The SDHW1532LHD from Summit's shallow-depth series offers built-in undercounter refrigeration with full functionality, perfect for kitchen islands, wet bars, and spaces with limited room. This 15" wide single-zone wine cellar, sized 18" deep, fits standard undercounter spaces with its 34" height. The front-breathing system allows for built-in installation, while the fully finished black cabinet permits freestanding use. The stainless steel trim blends seamlessly into the double pane tempered glass door for an elegant look, and a professional stainless steel handle is included. The unit features a sealed rear and right angle cord for a better fit, along with a fully articulating European hinge design for smoother opening. A lock located in the kickplate provides added security. This model comes with a left-hand door swing.
Highlights
-
15" Wide Wine Cellar: Single-zone wine cooler suitable for residential or commercial storage.
-
18" Depth: Ideal for wet bars, island kitchens, and other undercounter areas with limited space.
-
Built-in Capable: Front-breathing design optimizes space usage under the counter.
-
Commercially Approved: ETL-S is listed to NSF-7 Standards and meets UL-471 for commercial use.
-
Double Pane Tempered Glass Door: Offers a clear but protected view of the interior.
-
Seamless Stainless Steel Door Trim: One-piece stainless steel trim for an elevated look.
-
Fully Articulating European Style Hinge: Ensures smoother opening and a better fit.
-
Stainless Steel Interior: The walls and floor are constructed from stainless steel for added strength and easy cleanup.
-
Factory Installed Lock: Keyed lock for a secure interior (includes 2 keys).
-
Professional Handle: A stainless steel handle completes the elegant look.
-
Commercial Wine Shelving: Removable steel shelves in black with stainless steel trim.
-
Frost-Free Operation: No-frost operation minimizes user maintenance.
-
Digital Controls: Easy-to-use controls allow for precise temperature settings.
-
Angled Thermostat: Ergonomic thermostat position for accessible temperature readings.
-
Ideal Temperature Range: 41º to 68ºF, suitable for red, white, or sparkling wine bottles.
-
Dimmable LED Light: White LED lighting strips with three levels of brightness.
-
Open Door Alarm: Alerts when the door is left open for more than 60 seconds.
-
High/Low-Temperature Alarm: Sounds if interior temperature rises out of the set range.
-
Full Capacity: Holds up to 18 bottles with five gliding shelves and a floor shelf.
-
Internal Fan: Fan-forced cooling ensures even temperature distribution.
-
Sabbath Mode: Disables lighting and alarms for up to 96 hours.
-
Temperature Memory Function: Retains last settings after power loss.
-
Fully Finished Black Cabinet: Allows for freestanding use.
-
Sealed Back: Space-saving design with no exposed coils.
-
Right Angle Plug: Allows flush installation against the wall.
-
Left-Hand Door Swing: For right-hand door swing, see model SDHW1532.
-
Quiet Operation: Operates under 34 dB for minimal noise.
-
100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals.
-
CARB Compliant: Uses eco-friendly hydrocarbon-based refrigerant, meeting CARB regulations.
- Single zone wine cooler for residential or commercial storage
- Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
- Elegant design offers a clear but protected view of your interior
- Glass is framed by with a flush one-piece stainless steel trim for an elevated look
- Smoother opening and a better fit with an integrated European hinge
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- Keyed lock for a secure interior (2 keys included)
- Stainless steel handle completes the look
- Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
- No-frost operation for minimum user maintenance
- Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
- Thermostat s unique and ergonomic position allows for more accessible temperature readings with zero bending required
- The unit's temperature range of 41 to 68 F is ideal for red, white, or sparkling wine bottles
- Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
- Alarm sounds if the door is left open for more than 60 seconds
- Audible alarm sounds if the interior temperature rises out of set range
- 18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
- Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- Unit will retain its last settings when power is restored in the event of power loss
- Allows the unit to be used freestanding
- Space-saving design with no exposed coils that offers easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- For this unit with a standard right-hand door swing, see model SDHW1532
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. The SDHW1532LHD is a 15" wide single-zone wine cellar sized at 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The fully articulating European hinge design ensures smoother opening. A lock is located in the kickplate for added convenience and security. This unit comes with a left-hand door swing. For a right-hand version, see the SDHW1532. The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41 and 68 F to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances. The SDHW1532LHD is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHG1533 beverage center. Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. For a panel-ready version, see model SDHW153PNRLHD. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

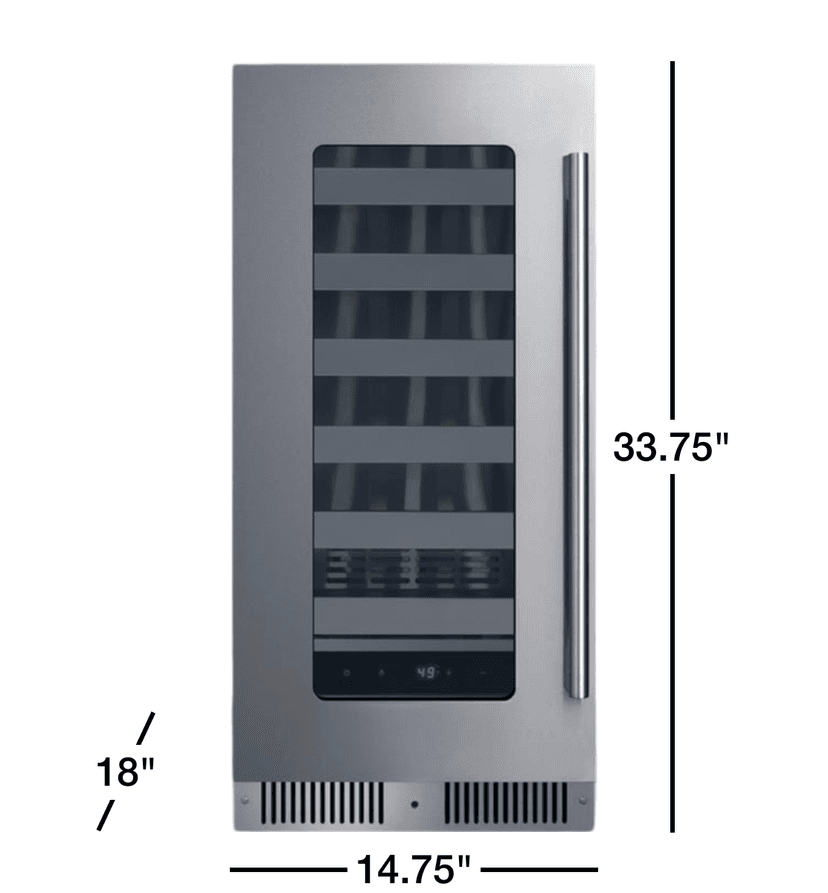

Height of Cabinet |
33.75" (86 cm) |
Width |
14.75" (37 cm) |
Depth |
18.0" (46 cm) |
Depth with Handle |
19.75" (50 cm) |
Depth with door at 90° |
32.63" (83 cm) |
Capacity |
1.8 cu.ft. (51 L) |
Bottles |
18 bottles |
Defrost Type |
Frost-Free |
Door |
Glass |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Sanitation |
ETL-S |
Amps |
1.0 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
88.0 lbs. (40 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101107813 |
Number of Zones |
1 |
Door Swing |
LHD |
Adjustable Shelves |
Yes |
Shelf Type |
Steel |
Shelf Qty |
6 |
Thermostat Type |
Digital |
Interior Light |
Yes |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
0.64 oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Interior Height 1 |
26.0" (66 cm) |
Interior Width 1 |
10.63" (27 cm) |
Interior Depth 1 |
12.25" (31 cm) |
Compressor Step Height |
3.75" (10 cm) |
Compressor Step Width |
10.63" (27 cm) |
Compressor Step Depth |
5.0" (13 cm) |
Temperature Range |
41°F to 68°F |
Sabbath Mode |
Yes |
