SUMMIT 15" Wide Built-in Wine Cooler, ADA Compliant in Stainless Steel

• Single zone wine cooler for residential or commercial cold storage
• Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
• Sized at 32" high for use under lower ADA compliant counters
• Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
• Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Walls and floor are constructed from stainless steel for added strength and easy cleanup
• Elegant design offers a clear but protected view of your interior
• Glass is framed by with a flush one-piece stainless steel trim for an elevated look
• Keyed lock for a secure interior (2 keys included)
• Stainless steel handle completes the look
• Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
• Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
• No-frost operation for minimum user maintenance
• Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
• Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
• Alarm sounds if the door is left open for more than 60 seconds
• Audible alarm sounds if the interior temperature rises out of set range
• Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
• Unit will retain its last settings when power is restored in the event of power loss
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Space-saving design with no exposed coils that offers easier cleanability
• Flat hinge ensures no added height is needed when installing under a counter
• User-reversible door swing on the refrigerator for added flexibility
• Allows the unit to be used freestanding
• ETL-S listed to NSF-7 Standards for use in commercial establishments
• Environmentally friendly design with no ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW1522 is a 15" wide single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW1522 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41 and 64 F to accommodate red, white, or sparkling wine. Store bottles on the removable steel shelves complete with stainless steel front trim. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDW1522 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDG1521 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

Overview

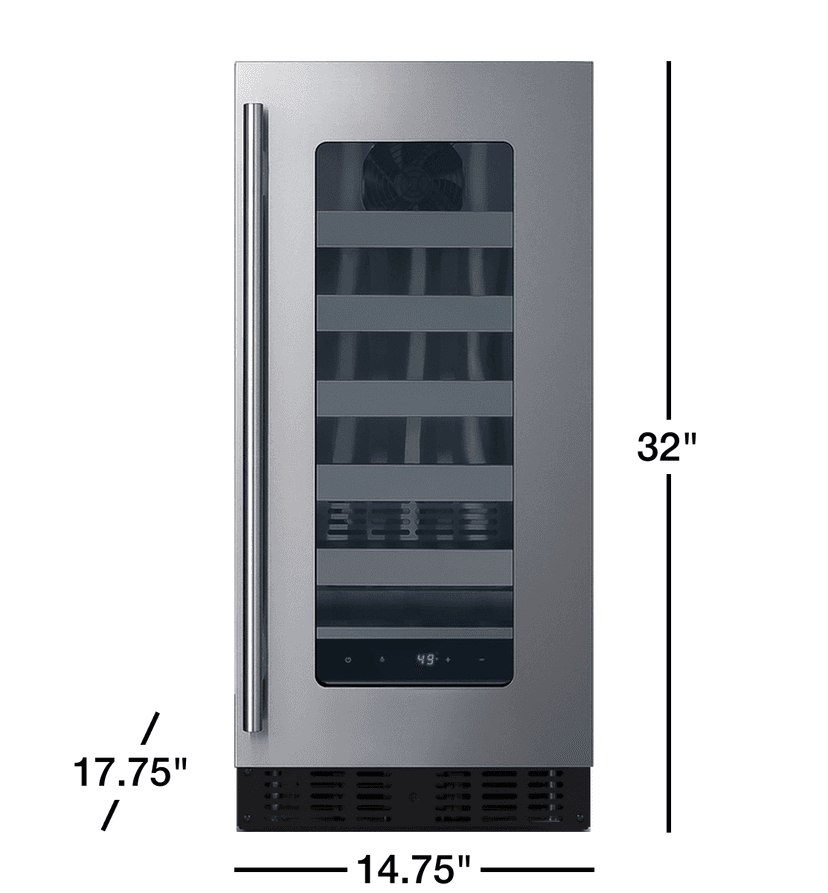

Height of Cabinet	32.0" (81 cm)
Width	14.75" (37 cm)
Depth	17.75" (45 cm)
Depth with Handle	19.63" (50 cm)
Depth with door at 90°	31.0" (79 cm)
Capacity	1.8 cu.ft. (51 L)
Bottles	18 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	68.0 lbs. (31 kg)
Shipping Weight	75.0 lbs. (34 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101079516
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Adjustable Shelves	Yes
Shelf Type	Steel
Shelf Qty	5
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	20.5" (52 cm)
Interior Width 1	10.75" (27 cm)
Interior Depth 1	12.25" (31 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	10.75" (27 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41 to 64 F
Sabbath Mode	Yes
Sound Level	33 dB
