SUMMIT 15" Wide Built-in Beverage Center (panel Not Included)

SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters. The SCR1536BGPNR is a slim-fitting 14 3/4" wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential use. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows you to use the unit freestanding. This model features a double pane tempered glass door with a panel-ready trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness). This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.A factory-installed lock offers convenient security as needed. Users provide their own handle. Inside, the SCR1536BGPNR includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance. With its perfect size and user-friendly features, the SCR1536BGPNR brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535BPNR wine cellar. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

• ETL-S listed to NSF-7 Standards for use in commercial establishments
• Make the best use of space by installing your appliance under the counter
• Allows the unit to be used freestanding
• Door frame can be customized with a custom overlay panel (panel frame dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness)
• Provides a full display of stored contents with a heat-safe double tempered design
• Keyed security on the door
• Electronic controls for precise temperature management.
• Temperature readout can be shown in Celsius or Fahrenheit
• Gentle illumination with an on/off switch
• Reduced maintenance with the convenience of auto defrost
• Slide-out shelves offer attractive and convenient storage for beverages
• Door ships with a right hand door swing. For a left hand version, add option "LHD"
• Optional setting lets you disable the lighting and alarm for up to 48 hours
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Space saving design
• For a complete set, pair this unit with the SWC1535BPNR wine cellar for true beverage storage convenience
• Environmentally friendly design with no ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters. The SCR1536BGPNR is a slim-fitting 14 3/4" wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential use. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows you to use the unit freestanding. This model features a double pane tempered glass door with a panel-ready trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness). This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.A factory-installed lock offers convenient security as needed. Users provide their own handle. Inside, the SCR1536BGPNR includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance. With its perfect size and user-friendly features, the SCR1536BGPNR brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535BPNR wine cellar. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

Overview

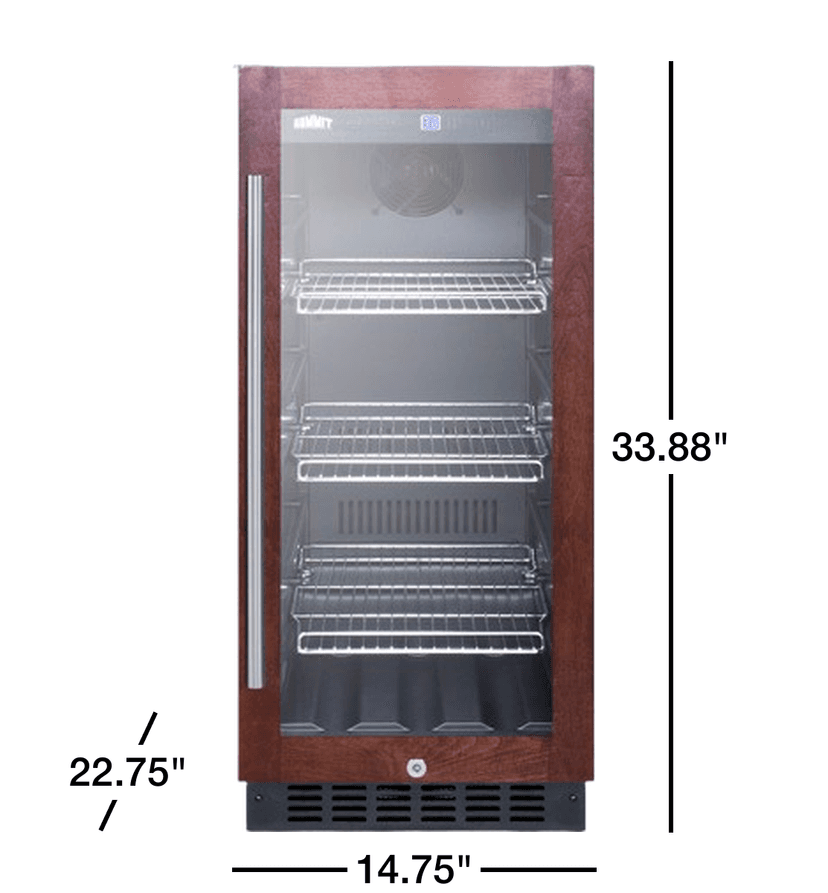

Height of Cabinet	33.88" (86 cm)
Width	14.75" (37 cm)
Depth	22.75" (58 cm)
Depth with door at 90°	36.25" (92 cm)
Capacity	2.45 cu.ft. (69 L)
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	245.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	77.0 lbs. (35 kg)
Shipping Weight	102.5 lbs. (46 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101082868
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Chrome
Shelf Qty	3
Thermostat Type	Digital
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	10.25" (26 cm)
Interior Depth	16.5" (42 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	10.25" (26 cm)
Compressor Step Depth	4.5" (11 cm)
