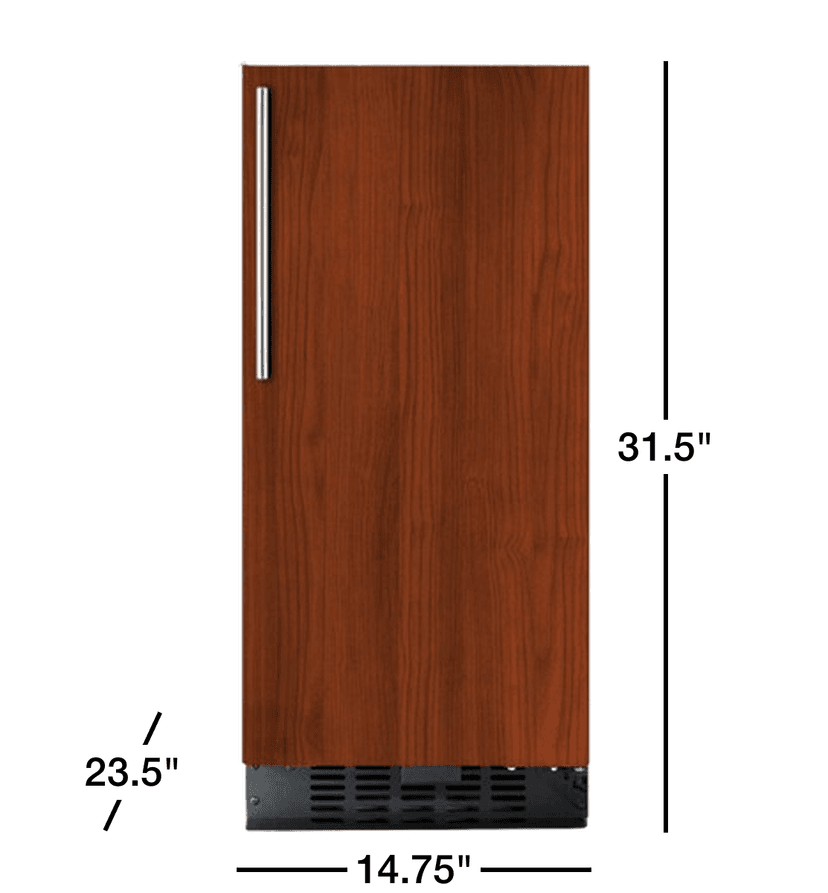

SUMMIT 15" Wide Built-in All-refrigerator with ADA Compliant, Door Storage, Adjustable Glass Shelves, Open Door Alarm, Integrated Hinge (panel Not Included)

• Sized just under 32" high to fit under lower ADA compliant counters
• Make the best use of space by installing your appliance under the counter
• Integrated stainless steel door frame accepts full overlay panels for a custom look; panel size should be 27 3/8" H x 14 11/16" W at 3/4" thickness
• Electronic controls for precise temperature management.
• Temperature readout can be shown in Celsius or Fahrenheit
• Gentle illumination with an on/off switch
• No-frost operation ensures reduced maintenance
• Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
• Two racks offer the perfect storage solution for tall bottles and condiments
• User-reversible door swing on the refrigerator for added flexibility
• Space saving design that is easy to clean
• Optional setting lets you disable the lighting and alarm for up to 48 hours
• Alarm sounds if the door is left open for more than 60 seconds
• Audible alarm sounds if the interior temperature rises out of set range
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Can be ordered with a stainless steel wrapped door or with an integrated frame that accepts custom panels
• In the event of power loss, unit will return to its last settings when power is restored
• Allows the unit to be used freestanding
• ETL-S listed to NSF-7 commercial standards
• Customers provide their own handle to match their own cabinetry style
• Environmentally friendly design with no ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces. The ALR15BIF is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use. The door features an integrated stainless steel frame designed to accept custom overlay panels, allowing you to match your refrigerator to your cabinetry for a customized look (panel size: 27 3/8" H x 14 11/16" W). This unit has a black cabinet and sealed back for easier cleanup. At just under 32" high, it's perfect for fitting under lower counters following ADA guidelines. Inside, the ALR15BIF features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach. This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view. The ALR15BIF is approved for both residential and commercial use, and is ETL-S listed to NSF-7 commercial standards. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.

Overview
Height of Cabinet	31.5" (80 cm)
Width	14.75" (37 cm)
Depth	23.75" (60 cm)
Capacity	2.2 cu.ft. (62 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	240.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	60.0 lbs. (27 kg)
Shipping Weight	91.5 lbs. (42 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101061511
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.78oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36°F to 43°F
Dimensions
Interior Height	23.0" (58 cm)
Interior Width	10.5" (27 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.5" (9 cm)
Compressor Step Width	10.5" (27 cm)
Compressor Step Depth	5.0" (13 cm)
