SUMMIT 12" Wide 230v 2-burner Radiant Cooktop With Safety Shutoff in Black

• Smooth-top glass cooktop ideal for hotels, apartments, and other small kitchen spaces
• Specially designed to ensure maximum guest safety with several protective features included
• Burners will automatically turn off after 30 minutes of inactivity, helping to prevent unsupervised heating
• If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
• Power will automatically shut off if boiling liquid or a wet cloth touches the control panel, resuming after the controls are dried
• Safety feature lets you lock the cooktop to prevent unsupervised changes
• Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
• Rear 7" burner offers 1800W for faster heating of larger cooking vessels
• Front element is 5.5" in diameter to meet most cooking needs
• Easy operation with a digital control panel that activates with a gentle touch, eliminating the concern of lost knobs in hotel settings
• Select and adjust your heating levels at the touch of a button
• Control panel includes a residual heat indicator to warn users if the surface is still too hot to touch after use
• Upfront controls meet ADA guidelines for easier accessibilty, ensuring users don't have to reach over a hot surface
• Allows you to program either burner to heat at a specified level for up to 30 minutes

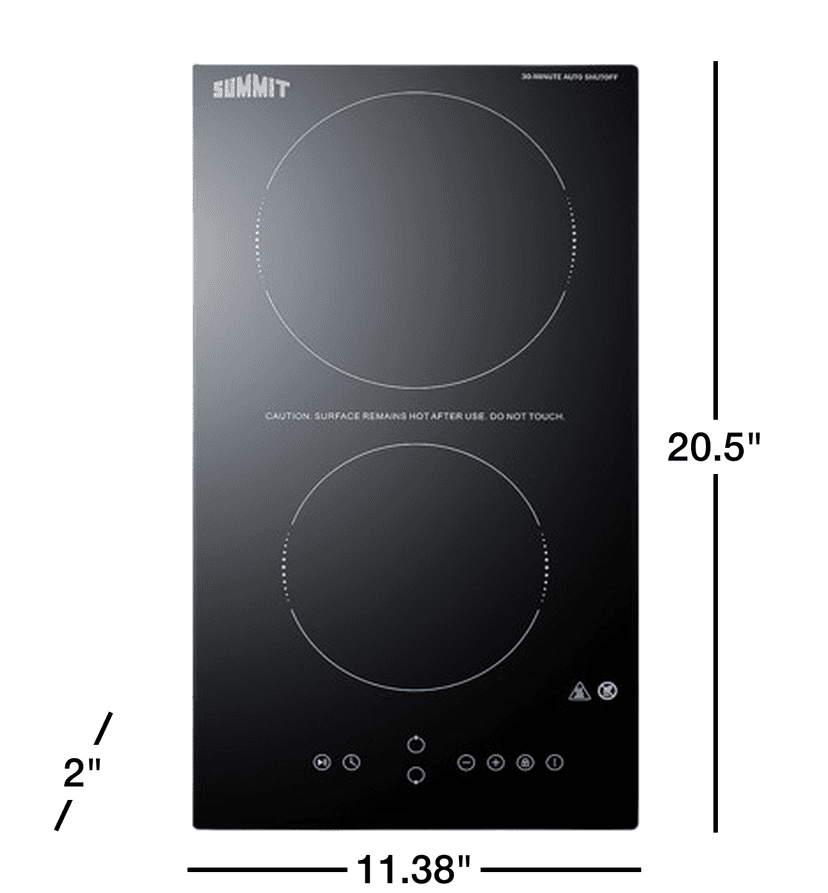

• Just under 12" wide to fit common 10.4" W x 19.5" D counter cutouts
• Requires professional hardwired installation to 230V power supply

Summit's selection of Safety First radiant cooktops includes thoughtfully designed choices ideal for trusted user safety in hotel rooms, extended stay suites, independent living facilities, and other kitchen settings that require an added level of peace of mind. Model CRH2BT30230 is a 12" wide 2-burner 230V radiant cooktop designed to fit popular 10.4" W x 19.5" D counter cutouts. The surface is made from smooth ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. For maximum user safety, this cooktop is designed with a 30-minute automatic shutoff mechanism, disabling each burner after a half hour of no user activity to prevent unsupervised cooking. It also shuts down if the power is activated but there is no activity after one minute, ensuring the elements won't heat if a guest accidentally touches the wrong button. Users can also activate the child lock to prevent unintended changes. This cooktop is equipped with digital controls that are easily managed with a gentle touch. They are located upfront to comply with ADA guidelines for user accessibility, ensuring users don't have to reach over a hot burner to make adjustments. Overflow protection adds another layer of safety by turning off the cooktop if liquid touches the control panel, allowing you to restart once the surface is dry. After cooking, a residual heat indicator stays illuminated until the surface has cooled down. This cooktop features two 1200W standard 6" elements to accommodate most general cooking needs. Nine power levels provide true cooking versatility, with a digital display that makes it easy to read and manage the settings at the touch of a button. The CRH2BT30230 is part Summit's Safety First series of cooktops specifically designed to meet the needs of hotels and similar lodging. For this cooktop in 115V, see model CRH2BT30115. Additionally, Summit manufactures standard radiant, induction, and coil cooktops, as well as solid disk cast iron elements for the ultimate durability. Browse the full Summit line to discover the right fit for your needs.

Overview
Height of Cabinet	2.0" (5 cm)
Width	11.38" (29 cm)
Depth	20.5" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	15.0
Voltage/Frequency	230 V AC/60 Hz
Weight	10.0 lbs. (5 kg)
Parts & Labor Warranty	1 Year
UPC	761101103716
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	2
Controls	Digital
Cooking Timer	Yes
Countertop Cutout Height	4.0" (10 cm)
Countertop Cutout Width	10.4" (26 cm)
Countertop Cutout Depth	19.5" (50 cm)
Power Source	230V
Element #1 Size	7.0" (18 cm)
Element #1 Wattage	1800.0
Element #2 Size	5.5" (14 cm)
Element #2 Wattage	1200.0
Power Cord Included	No
Auto Shutoff Time	30 Minutes
