SUMMIT 12" Wide 230v 2-burner Radiant Cooktop including High Power Element in White

• Made in Germany, the white Schott glass offers easier cleanup and lasting durabilty
• Rear 7" burner offers 1800W for faster heating of larger cooking vessels
• Front burner is 5.5" in diameter to meet most cooking needs
• Easy operation with a digital control panel and digital display
• Select and adjust your heating levels at the touch of a button
• Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
• Fits counter cutout sizes that are 10.75" wide by 19.9" deep
• Upfront controls meet ADA guidelines for easier accessibilty
• Allows you to program either burner to heat at a specified level for up to 99 minutes
• Safety feature lets you lock the cooktop to prevent unsupervised heating
• If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
• If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
• Requires professional hardwired installation to 230V power supply

SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR2B23T4W is a 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. For true cooking versatility, the CR2B23T4W features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements. With its attractive design, ideal size, and intuitive touch controls, the CR2B23T4W brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

Overview

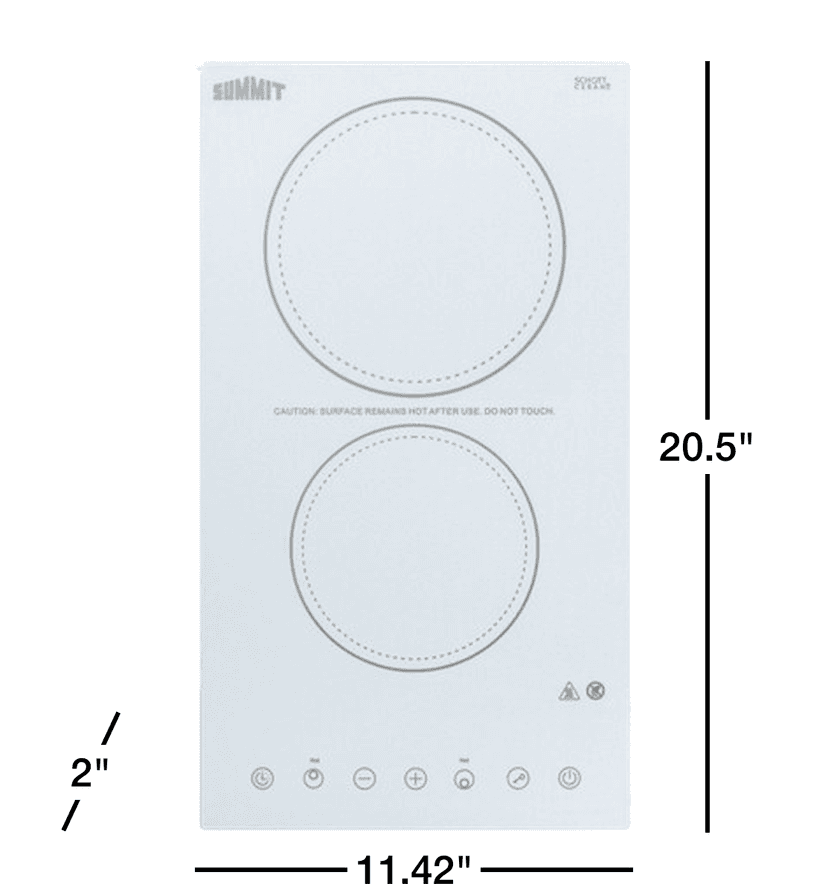

Height of Cabinet	2.0" (5 cm)
Width	11.38" (29 cm)
Depth	20.5" (52 cm)
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	15.0
Voltage/Frequency	230 V AC/60 Hz
Weight	10.0 lbs. (5 kg)
Parts & Labor Warranty	1 Year
UPC	761101053301
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	2
Controls	Digital
Cooking Timer	Yes
Countertop Cutout Height	5.9" (15 cm)
Countertop Cutout Width	10.75" (27 cm)
Countertop Cutout Depth	19.9" (51 cm)
Power Source	230V
Element #1 Size	7.0" (18 cm)
Element #1 Wattage	1800.0
Element #2 Size	5.5" (14 cm)
Element #2 Wattage	1200.0
Power Cord Included	No
