The CR2B23T3B SUMMIT collection features smooth-top radiant cooktops designed with an easy-to-clean surface and modern style, perfect for smaller kitchen spaces. This cooktop offers true cooking versatility with its dual burner system: a large 7" 1800W burner at the rear for fast heating and a smaller 5.5" 1200W burner at the front for standard cooking. The digital touch controls are conveniently located at the front, allowing easy access without reaching over hot surfaces. With nine power levels, the cooktop provides precise control for tasks ranging from melting and simmering to rapid boiling. The digital display ensures easy readability and control at the touch of a button. Additionally, the unit includes a timer function that lets you program the cooking duration and power level for up to 99 minutes, automatically shutting off the burner when the time elapses. Safety features include a child lock, automatic shutoff, and residual heat indicators for both elements.
Highlights
-
Schott glass surface: Easy cleanup and elegant style on a smooth ceramic glass surface in a jet-black finish.
-
Large 1800W burner: The Rear 7" burner offers 1800W for faster heating of larger cooking vessels.
-
Standard 1200W burner: The front burner is 5.5" in diameter to meet most cooking needs.
-
Digital touch controls: Easy operation with a digital control panel and display.
-
9 power levels: Select and adjust your heating levels at the touch of a button.
-
Residual heat indicator lights: Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch.
-
Designed for built-in installation: Fits counter cutout sizes that are 10.75" wide by 19.9" deep.
-
ADA-compliant design: Upfront controls meet ADA guidelines for easier accessibility.
-
Timer: Allows you to program either burner to heat at a specified level for up to 99 minutes.
-
Child lock: The safety feature lets you lock the cooktop to prevent unsupervised heating.
-
Automatic shutoff: If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating.
-
Safety cut-off function: If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off.
-
230V operation: Requires professional hardwired installation to a 230V power supply.
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Rear 7" burner offers 1800W for faster heating of larger cooking vessels
- Front burner is 5.5" in diameter to meet most cooking needs
- Easy operation with a digital control panel and digital display
- Select and adjust your heating levels at the touch of a button
- Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
- Fits counter cutout sizes that are 10.75" wide by 19.9" deep
- Upfront controls meet ADA guidelines for easier accessibilty
- Allows you to program either burner to heat at a specified level for up to 99 minutes
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- Requires professional hardwired installation to 230V power supply
SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR2B23T3B is a 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. For true cooking versatility, the CR2B23T3B features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements. With its attractive design, ideal size, and intuitive touch controls, the CR2B23T3B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

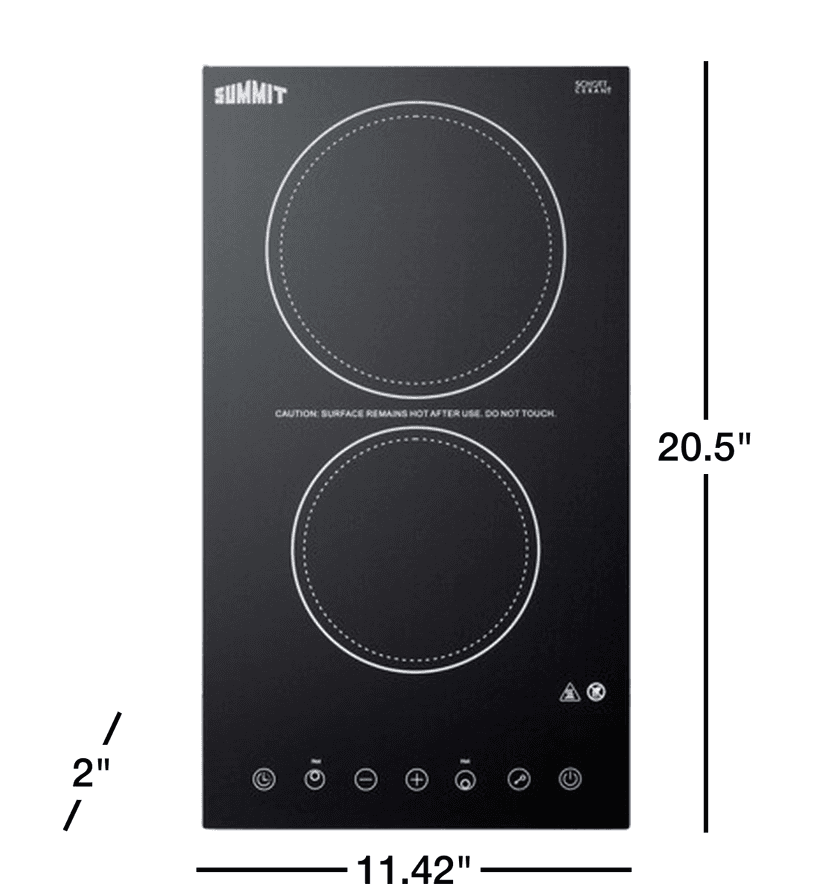

Height of Cabinet |
2.0" (5 cm) |
Width |
11.38" (29 cm) |
Depth |
20.5" (52 cm) |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Amps |
15.0 |
Voltage/Frequency |
230 V AC/60 Hz |
Weight |
10.0 lbs. (5 kg) |
Parts & Labor Warranty |
1 Year |
UPC |
761101053295 |
Heating Type |
Radiant |
Surface |
Glass |
Element Type |
Glasstop |
Number of Elements |
2 |
Controls |
Digital |
Cooking Timer |
Yes |
Countertop Cutout Height |
5.9" (15 cm) |
Countertop Cutout Width |
10.75" (27 cm) |
Countertop Cutout Depth |
19.9" (51 cm) |
Power Source |
230V |
Element #1 Size |
7.0" (18 cm) |
Element #1 Wattage |
1800.0 |
Element #2 Size |
5.5" (14 cm) |
Element #2 Wattage |
1200.0 |
Power Cord Included |
No |
Auto Shutoff Time |
2 Hours |
