Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.

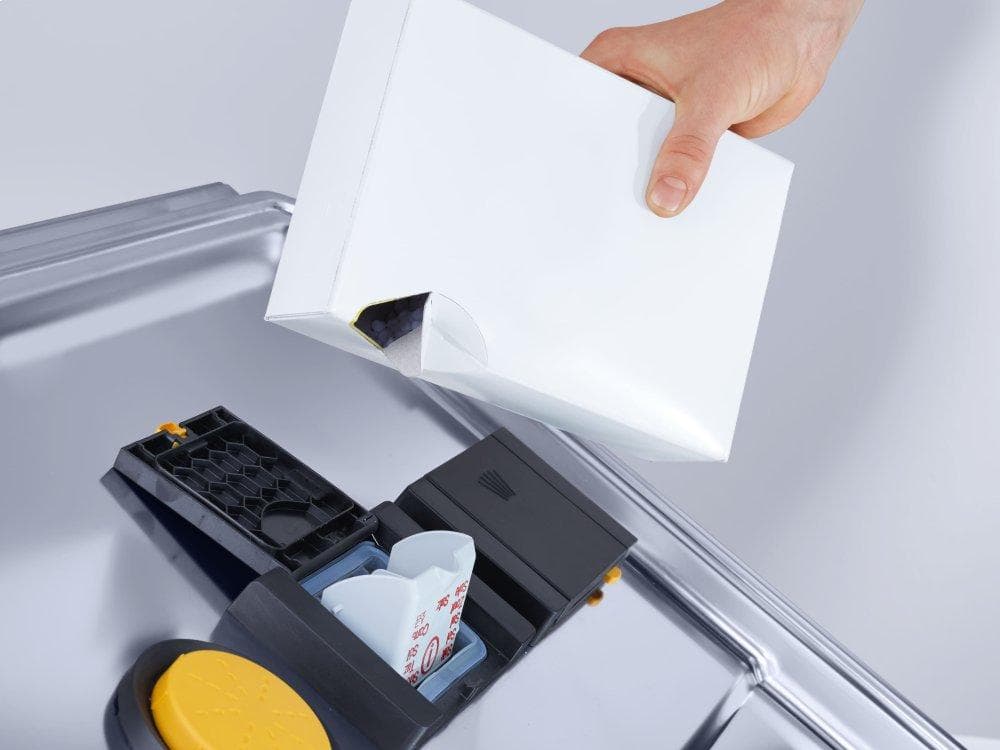

Door salt container
Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
AutoClose
A light touch is all it takes: With AutoClose the door closes on its own.
Extensive range of accessories
Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.

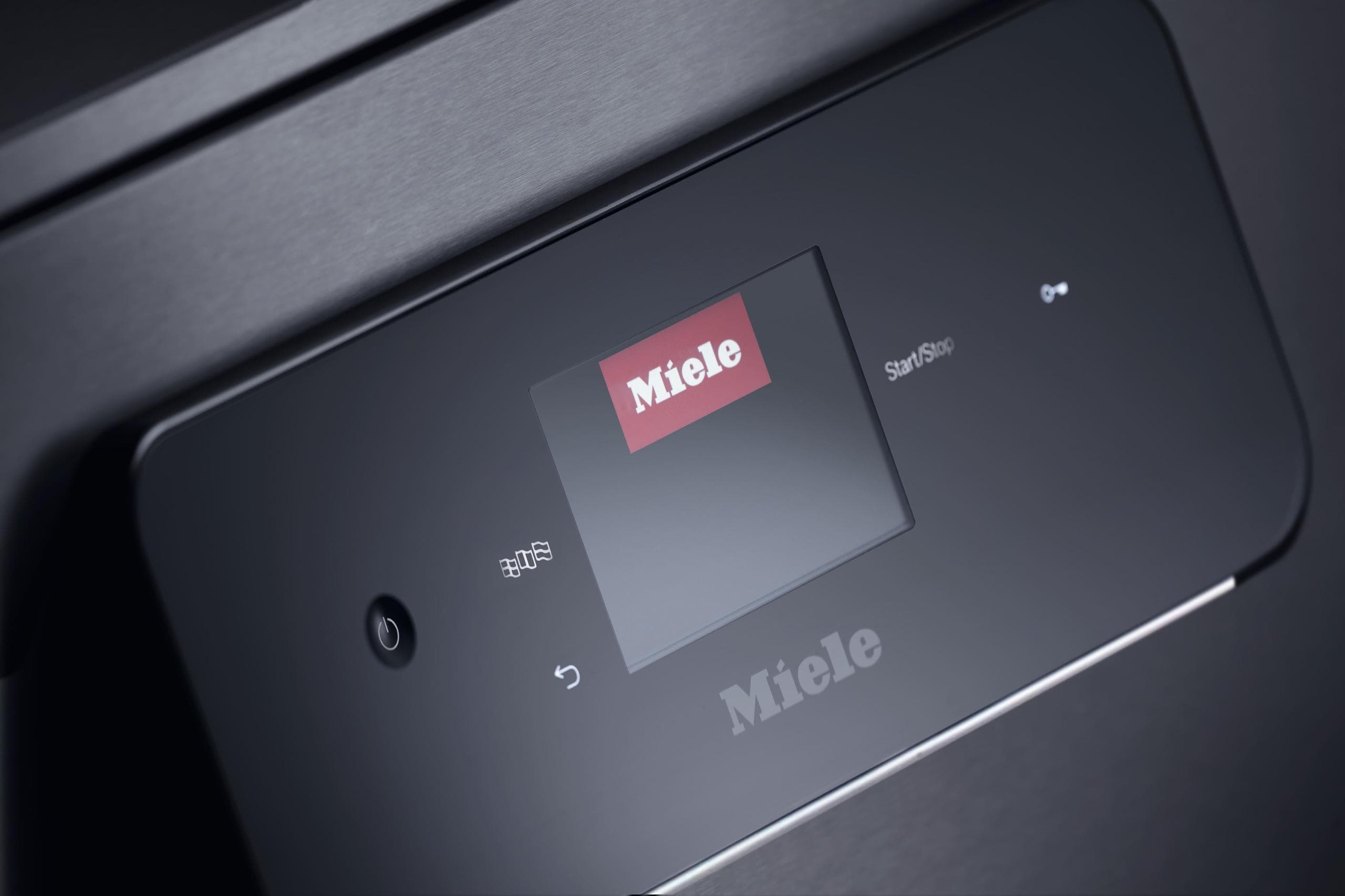

M Touch Flex controls
Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.
Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.
Proven hygiene
Our dishwashers in the PFD 40x series remove more than 99.9% * of viruses (including coronaviruses).
Proven hygiene
Our dishwashers in the PFD 40x series remove 99.999% * of most bacteria.
Height-adjustable upper basket
The height of the upper basket can be adjusted to suit the items being cleaned.
Plastic baskets on two levels
It is possible to use the plastic baskets on two levels as an option.

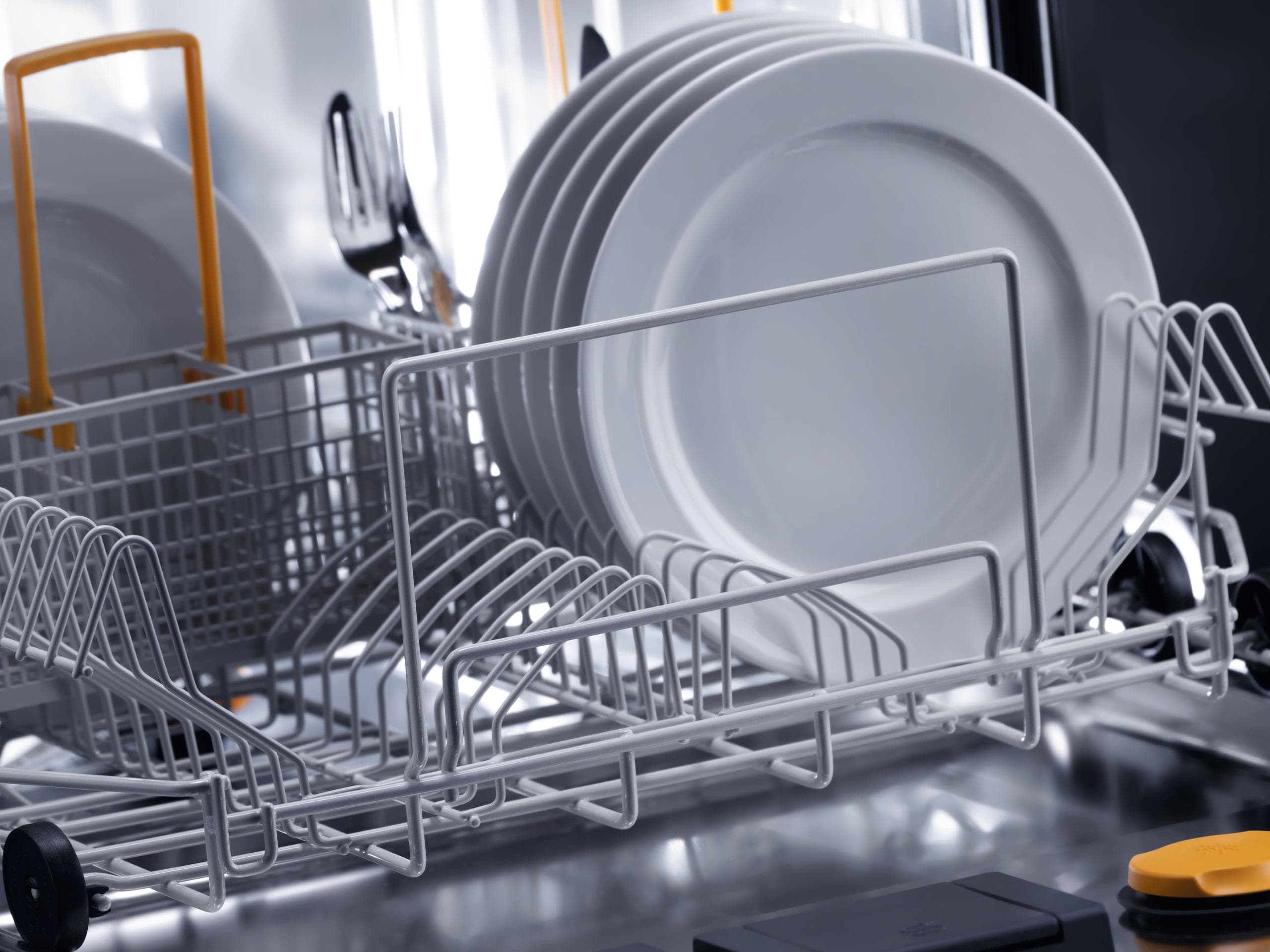

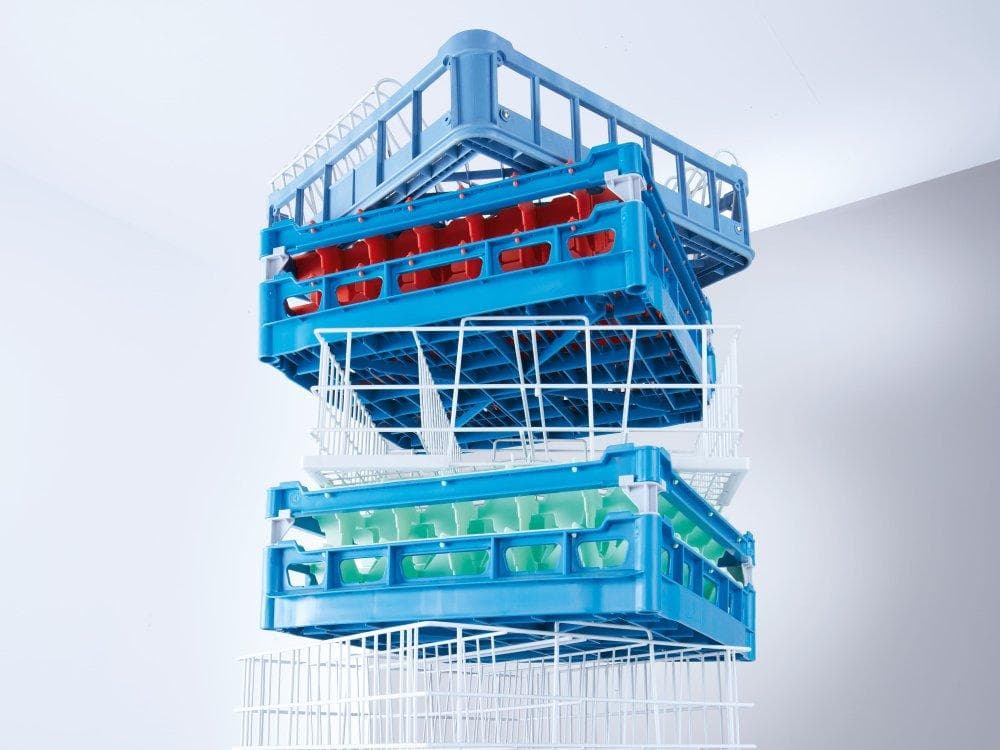

Professional baskets
Functional design for superb washing and reliable drying results.
Practical bottle basket
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Hygienic cleanliness down to the very last detail
Medication cups and lids can also be cleaned hygienically using inserts that are available separately.

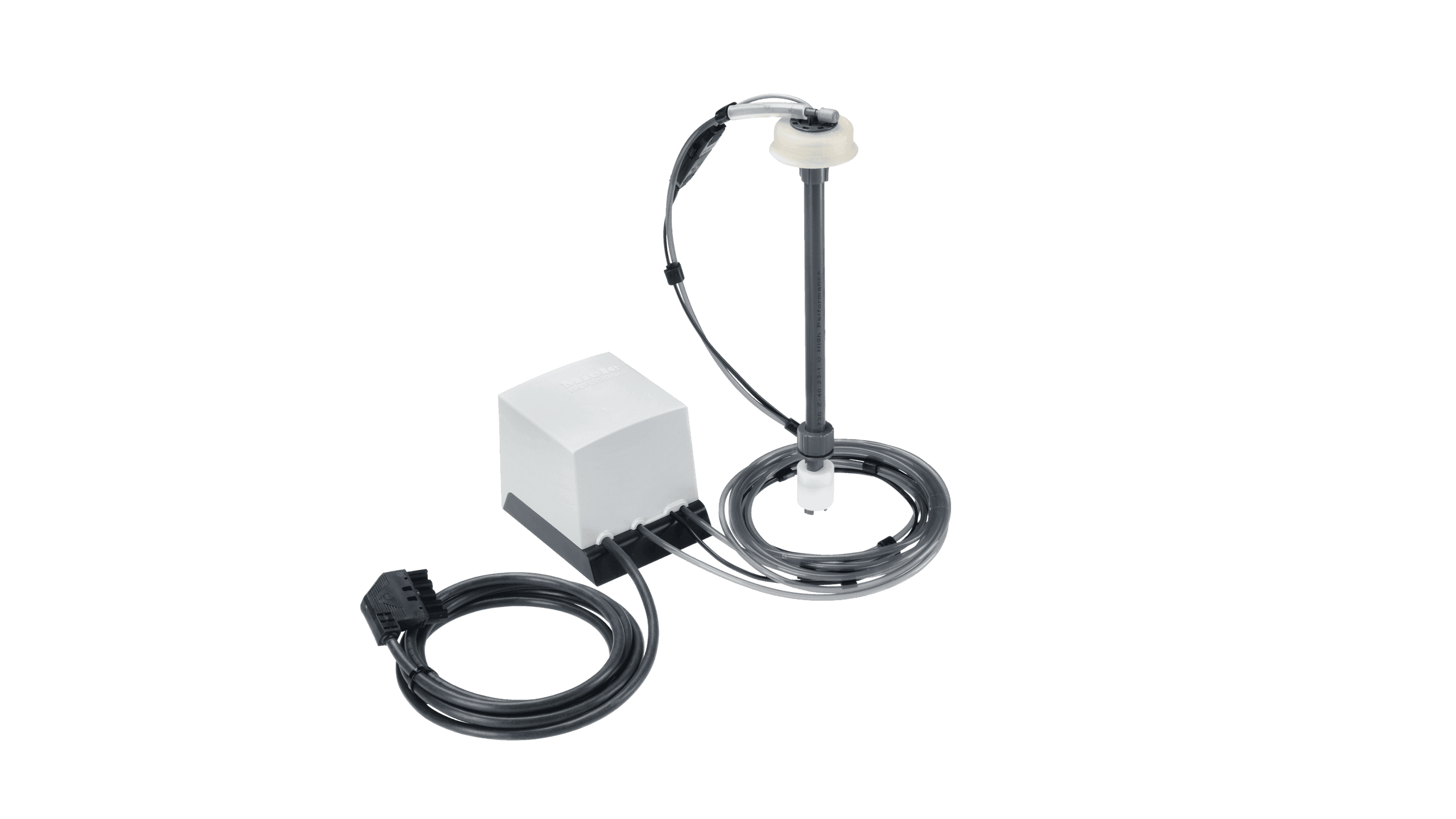

Connection for detergent dispenser module
An optional dispenser module can be connected for convenient and economical use of liquid agents.
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Integrated water softener
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.

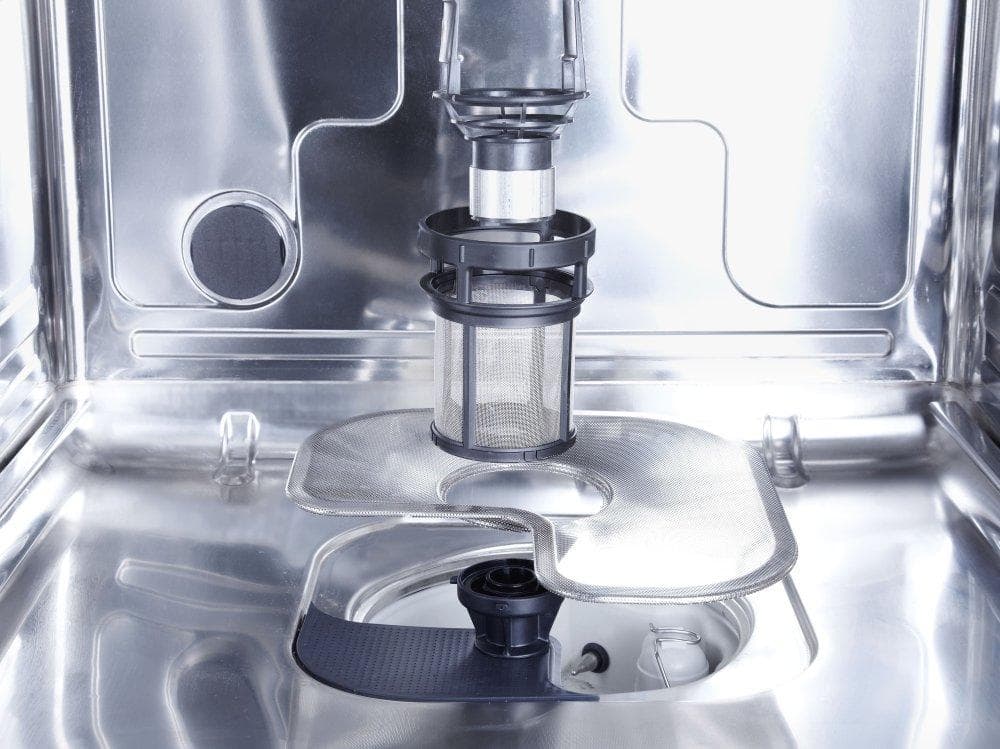

Highly effective filter system
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
Efficient hot water connection
Connection to a hot water supply shortens the program run times, reducing energy consumption.

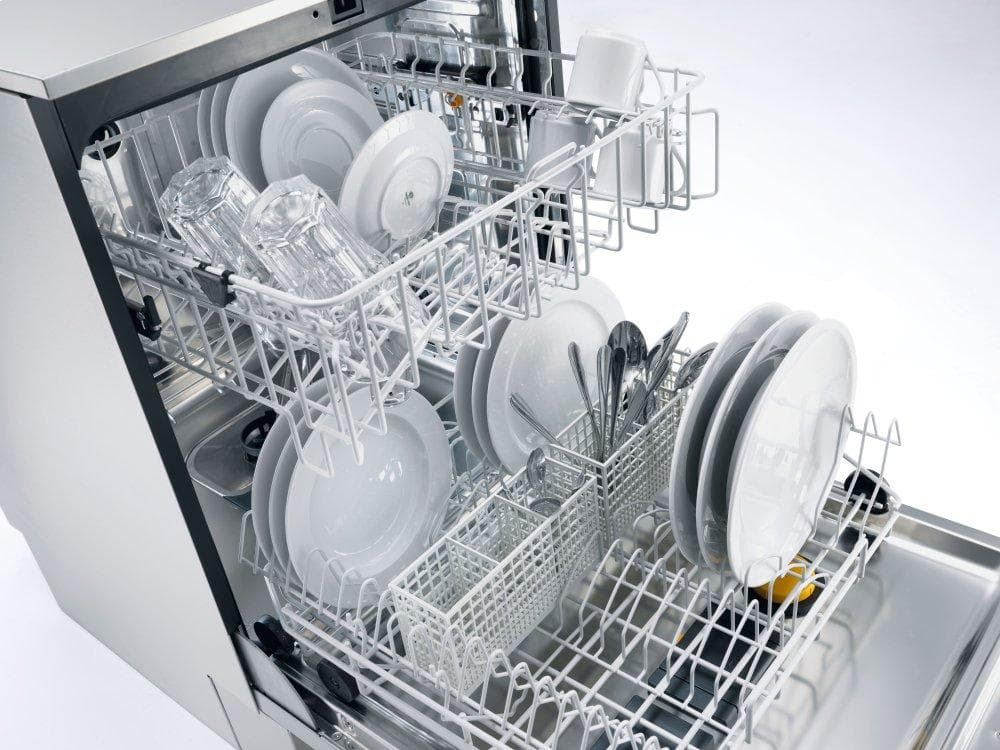

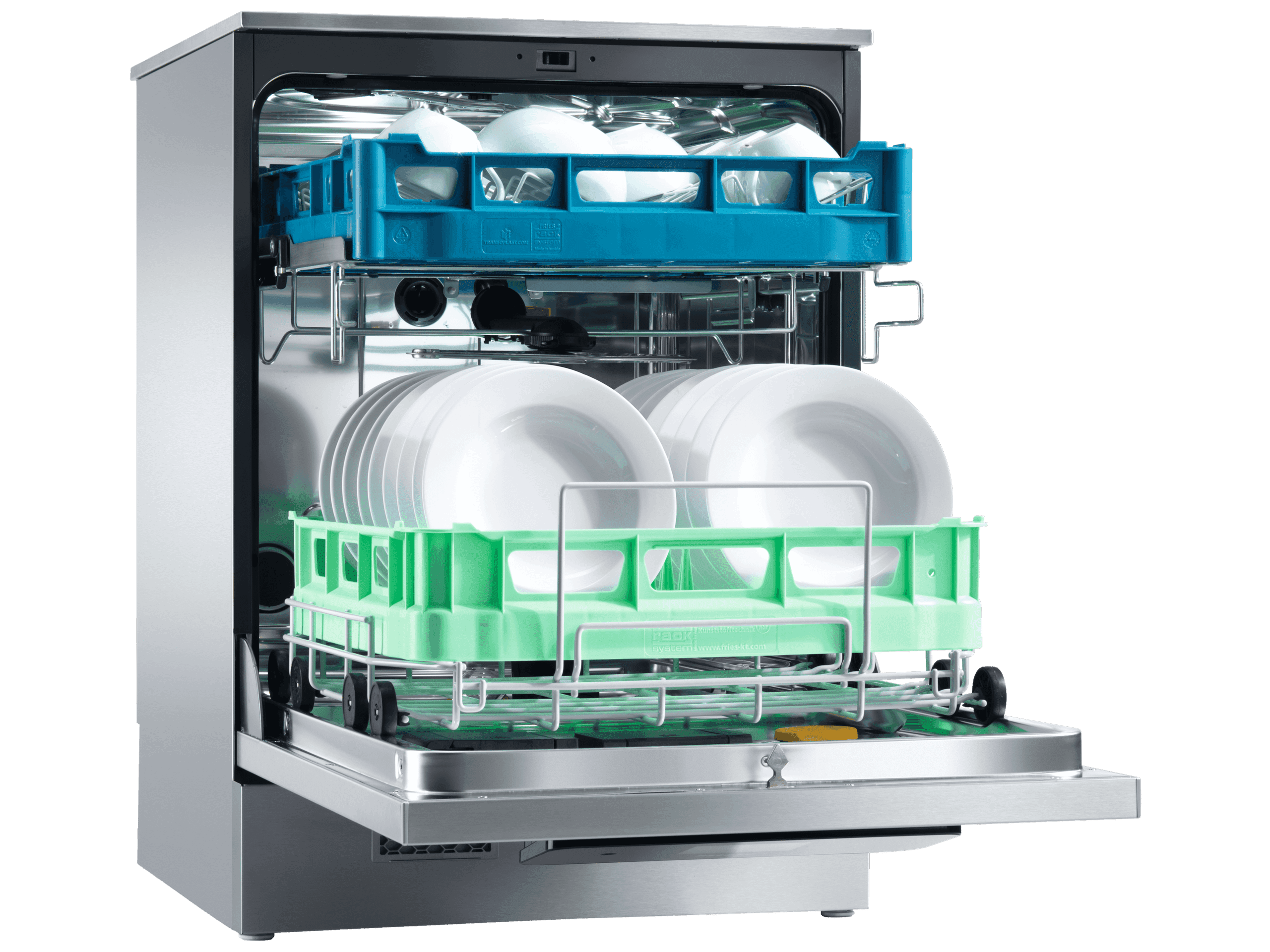

Powerful cleaning performance on two levels
High capacity: The most diverse items can be arranged safely on two wash levels.

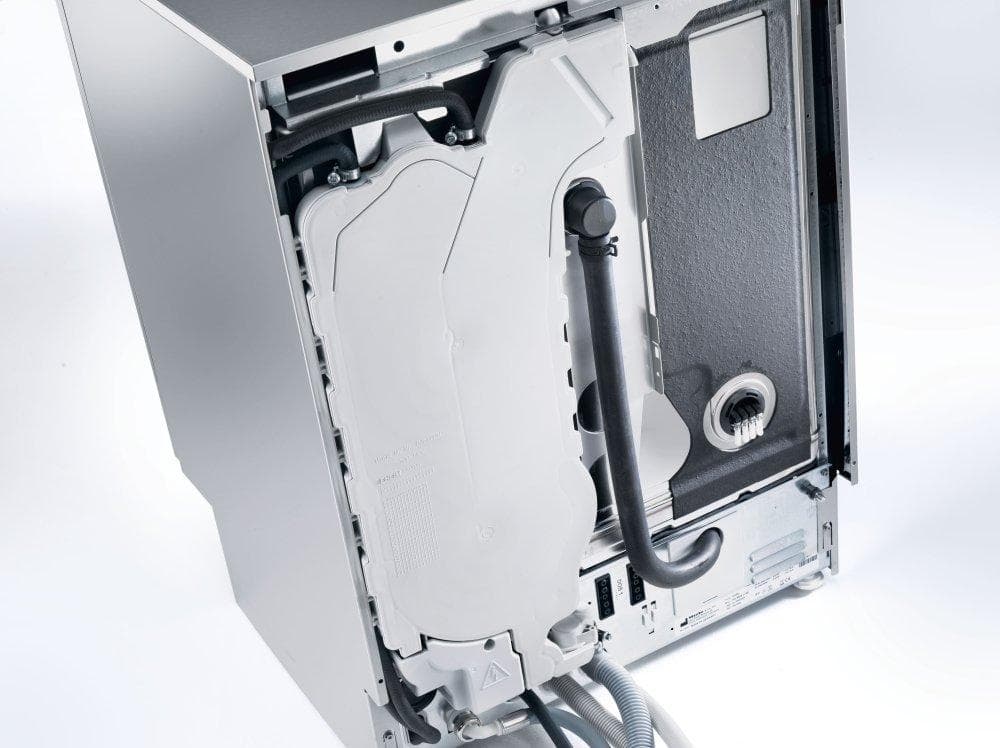

Water protection guarantee *
Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.
AutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program.
Perfect GlassCare
A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
Adjustable program parameters
Adjusting the program parameters as required ensures consistently perfect dishwashing results
Aerosol steam condenser
Dry dishes and good room climate are the result of exceptional condensation performance.
Very short cycle times
Thanks to intelligent professional technology you can benefit from very short programs and perfect results.

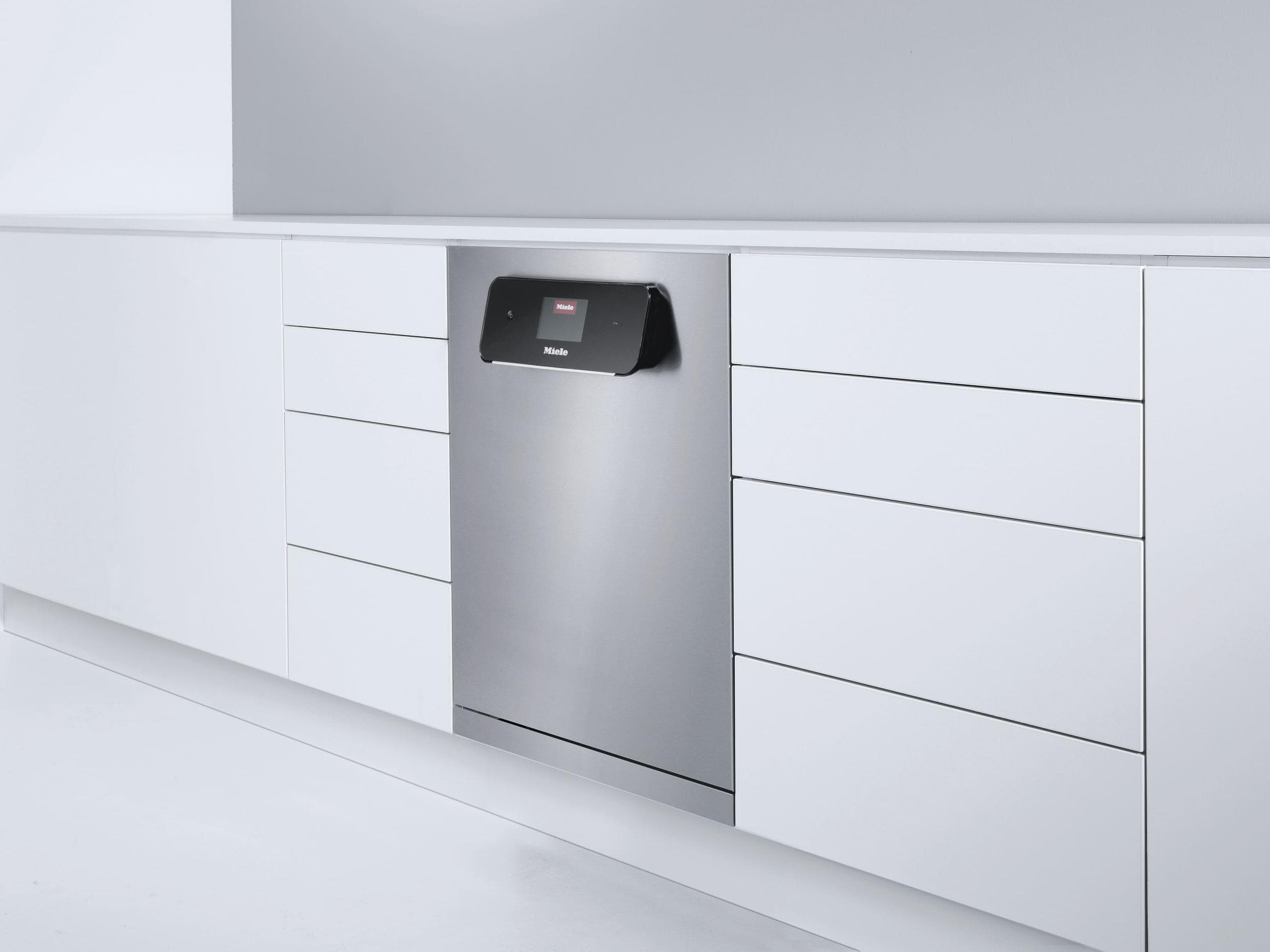

Perfect integration under countertops
Perfect appearance thanks to dishwashers that can be built-under.
Future-proof networking via WiFi
Fully informed with a high-performance network connection.
USER CONVENIENCE Delay start and time left displayFor maximum flexibility, a delay start time of up to 24 hours can be selected.
Door salt containerErgonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
AutoCloseA light touch is all it takes: With AutoClose the door closes on its own.
Extensive range of accessoriesAlways perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Choice of display languagesMulti-talented: set various languages on the display so that you fully understand every piece of information.
M Touch Flex controlsUse all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.
HYGIENE Fresh water systemConstantly high cleaning performance and filtration thanks to repeated water changes.
Proven hygieneOur dishwashers in the PFD 40x series remove more than 99.9% * of viruses (including coronaviruses).
Proven hygieneOur dishwashers in the PFD 40x series remove 99.999% * of most bacteria.
BASKET DESIGN Height-adjustable upper basketThe height of the upper basket can be adjusted to suit the items being cleaned.
Plastic baskets on two levelsIt is possible to use the plastic baskets on two levels as an option.
Professional basketsFunctional design for superb washing and reliable drying results.
Practical bottle basketBottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Hygienic cleanliness down to the very last detailMedication cups and lids can also be cleaned hygienically using inserts that are available separately.
EFFICIENCY AND SUSTAINABILITY Connection for detergent dispenser moduleAn optional dispenser module can be connected for convenient and economical use of liquid agents.
Low consumption valuesEconomical and efficient: Miele Professional dishwashers stand out with low consumption values.
Integrated water softenerThe built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Highly effective filter systemOutstanding dishwashing results and reliability are largely due to the highly effective filter system.
Efficient hot water connectionConnection to a hot water supply shortens the program run times, reducing energy consumption.
Powerful cleaning performance on two levelsHigh capacity: The most diverse items can be arranged safely on two wash levels.
QUALITY Water protection guarantee *Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
Quality you can rely onDurability: Miele Professional dishwashers are tested for a long service life.
PERFORMANCE AutoOpen assisted dryingCompletely dry: The dishwasher door opens automatically at the end of the program.
Perfect GlassCareA gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
Adjustable program parametersAdjusting the program parameters as required ensures consistently perfect dishwashing results
Aerosol steam condenserDry dishes and good room climate are the result of exceptional condensation performance.
Very short cycle timesThanks to intelligent professional technology you can benefit from very short programs and perfect results.
Perfect integration under countertopsPerfect appearance thanks to dishwashers that can be built-under.
CONNECTIVITY Future-proof networking via WiFiFully informed with a high-performance network connection.

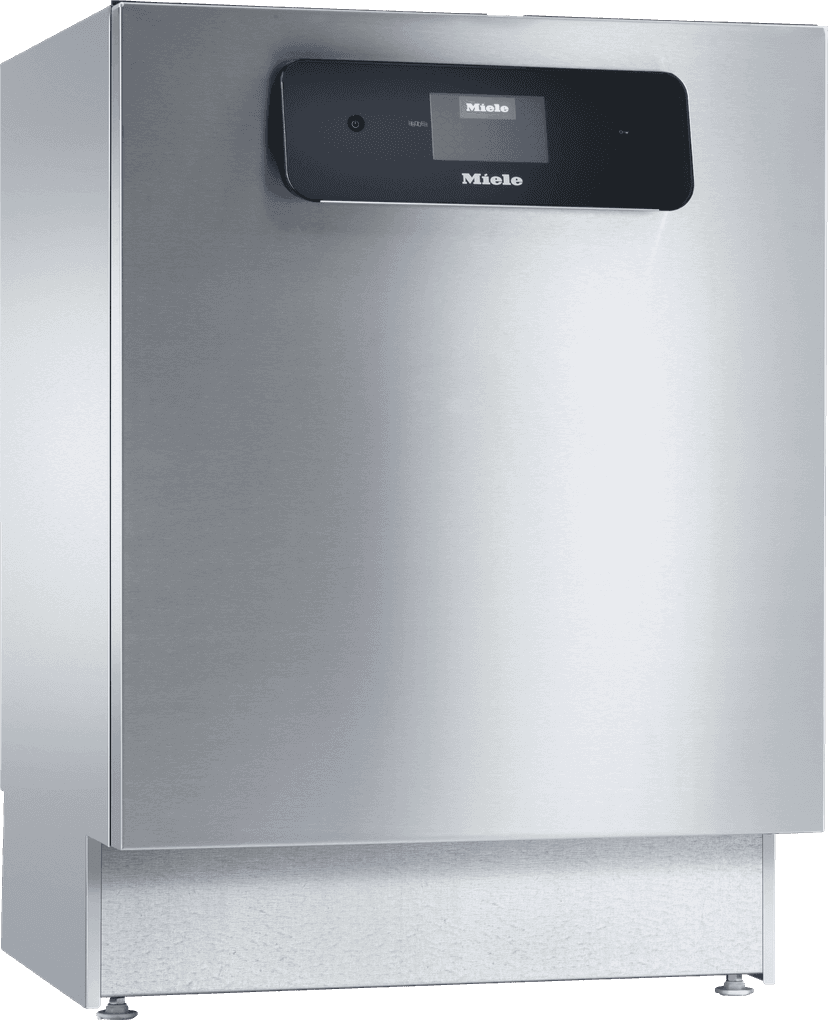

Model |
Built-under dishwasher |
Range |
MasterLine |
Model |
Hygiene |
Wash system |
Fresh water front loader |
Number of levels |
2 |
Front |
Stainless steel |
Lid |
Without lid |
Side walls |
Galvanised |
Suitable for retirement and care homes |
|
Suitable for hospitals |
|
Suitable for child care facilities |
|
Suitable for universities and schools |
|
Tested virucidal efficacy |
|
Certified hygiene |
|
Circulation pump, Qmax in gal/min (l/min) |
103 (390) |
Shortest program duration in min. |
6 |
Maximum final rinse temperature in °F (°C) |
185 (85) |
Cleaning performance, plates/h |
380 |
Cleaning performance, baskets/h |
20 |
Possible to wash plastic baskets on two levels |
|
Service life in wash cycles |
28000 |
Control system |
M Touch Flex |
Max. delay start in h |
24 |
Countdown indicator |
• |
Dishwashing programs [number] |
12 |
Program sequence indicator |
• |
Choice of display language |
• |
Language-neutral operation |
• |
Electrical connection |
2 AC 240V 60HZ |
Heater rating in kW |
5.40 |
Total connected load in kW |
5.80 |
Fuse rating in A |
30 |
Length of power cord in ft (m) |
6 (1.90) |
NEMA plug: Twist Lock L6-30 |
• |
Electrical connection |
3 AC 240V 60HZ |
Heater rating in kW |
5.40 |
Total connected load in kW |
5.80 |
Fuse rating in A |
20 |
Cold water [number] |
1 |
Hot water [number] |
1 |
Required flow pressure in bar |
1-10 |
Drain hose [DN] |
22 |
Maximum delivery head for drain pump in inches (cm) |
39 3/8 (100) |
Integrated water softener |
• |
Maximum water hardness in gpg (mmol/l) |
62.595 (10.70) |
Water protection system |
Waterproof system |
Water consumption per wash cycle in gal (l) |
2.1 (8.00) gll (l) |
Length of water inlet hose in inches (cm) |
67 (170) |
Length of water drain hose in inches (cm) |
59 1/8 (150) |
External dimensions, net height in inches |
32 5/16 (820) |
Maximum height adjustment in inches (mm) |
60 |
External dimensions, net width in inches |
23 9/16 (598) |
External dimensions, net depth in inches |
23 7/16 (595) |
External dimensions, gross height in inches |
36 1/4 (920) |
External dimensions, gross width in inches |
26 7/16 (670) |
External dimensions, gross depth in inches |
29 3/16 (740) |
Usable space in wash cabinet, width in inches (mm) |
22 1/16 (559) |
Usable space in wash cabinet, height in inches (mm) |
21 1/8 (536) |
Usable space in wash cabinet, depth of upper basket in inches (mm) |
18 11/16 (474) |
Usable space in wash cabinet, depth of lower basket in inches (mm) |
20 3/8 (516) |
In-feed height above floor in inches (mm) |
8 9/16 (216) |
Required niche width in mm |
23 5/8 (600) |
Net weight [kg] |
166 (75) |
Gross weight in lbs. |
188 (85) |
Maximum floor load in N/m |
1200 |
Emission sound pressure level in workplace (LpA) |
45 dB(A) re 20 Pa |
Sound power (LwA) in dB(A) re 1 pW |
57 |
Heat output to the room in Mj/h |
1.44 |
Universal |
|
Super short |
• |
Short |
|
SaniWash |
• |
SaniWash Plus |
• |
Cold/Pre-wash |
• |
Glasses |
• |
Beer glasses |
• |
Cutlery |
• |
Plastic |
• |
Intensive |
|
Reactivation |
• |
Drainage by pump |
• |
2 x E 816 inserts for plates |
• |
1 x APFD 215 upper basket |
|
1 x APFD 220 lower basket for inserts |
• |
2 x APFD 420 insert for cutlery |
• |
Height-adjustable upper basket |
|
Combinable with APFD 210 bottle basket |
|
Drying |
AutoOpen assisted drying |
1 Combi dispenser/door for powder and liquid media |
• |
Wash cabinet made from high-quality stainless steel |
• |
In-door salt container |
• |
AutoClose |
• |
Perfect GlassCare |
• |
Aerosol steam condenser |
• |
Door lock, protected by code |
|
Adjustable temperature holding time |
• |
Adjustable final rinse temperature |
• |
Optical interface |
• |
Highly effective filter system with filter monitoring |
|
Wi-Fi |
|
A wide range of accessories (optional) |
• |
External dispensing module for liquid cleaning agent |
• |
Complies with Machinery Directive 2006/42/EC |
• |
Splash protection IPX1 |
• |
EMC radio suppressed |
• |
DIN 10512 |
• |
DIN EN 17735 |
• |
ETL |
• |
ADA compliant |
• |
