Series |
Wash Tower |
Type |
F/Loader, F/Loader Dryer |
Capacity (cu.ft.) |
Washer 4.5 cu. ft./Dryer 7.4 cu. ft. |
Matching Electric Dryer |
WKE100HVA |
Matching Gas Dryer |
WKG101HVA |
Color |
Graphite Steel (V) |
Touch Buttons |
Yes |
Full Touch Electronic Control Panel with LED Display |
Yes |
Unified Center Control |
Yes |
ENERGY STAR® Qualified |
Yes |
CEE Tier |
Tier 2 |
IMEF |
2.92 |
IWF |
2.9 |
ENERGY STAR® Qualified |
Yes |
CEF |
3.49 |
No. of Programs |
6 |
Programs |
Normal, Bedding, Delicates, Heavy Duty, Speed Wash, Downloaded |
No. of Programs |
6 |
Programs |
Normal, Bedding, Delicates, Heavy Duty, Small Load, Downloaded |
No. of Options |
9 |
Options |
Delay wash, Steam, Extra Rinse, Pre-wash, Sanitary*, Tub Clean*, Control Lock*, Signal*, Wi-Fi* / Remote Start* |
No. of Options |
7 |
Options |
Wrinkle Care, More Time, Less Time, Energy Saver, Control Lock*, Signal*, Wi-Fi* / Remote Start* |
No. of Wash/Rinse Temps |
5 |
Wash/Rinse Temps |
Hot, Warm/Hot, Warm, Cold/Warm, Cold |
No. of Spin Speeds |
5 |
Spin Speeds |
High, Medium/High, Medium, Low, No Spin |
Max RPM |
1300 |
Water Levels |
Load Sensing |
No. of Soil Levels |
5 |
Temperature Settings |
High, Medium/High, Medium, Low/Medium, Low |
Drying Levels |
Very, More, Normal, Less, Damp |
Manual Dry Times |
60 min., 50 min., 40 min., 30 min., 20 min. |
AI DD™ |
Yes |
Steam Technology |
Yes |
Allergiene™ Cycle |
Yes |
Sanitary Cycle |
Yes |
AI Sensor Dry™ |
Yes |
Sensor Dry |
Yes |
Precise Temperature Control with Variable Heater |
Yes |
TrueBalance™ Anti-Vibration System |
Yes |
4 Tray Dispenser |
Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener |
End of Cycle Signal |
Yes |
LoadSense |
Yes |
Control Lock* |
Yes |
Auto Suds Removal |
Yes |
Leveling Legs |
4 Adjustable Legs |
Drum Light |
Yes |
Remaining Time Display/Status Indicator (s) |
Yes |
3 Minute Installation Check |
Yes |
End of Cycle Signal |
Yes |
Drum Light |
Yes |
FlowSense™ Duct Clogging Indicator |
Yes |
Wrinkle Care Option |
Yes |
Control Lock |
Yes |
Venting Option |
2 Way Venting |
4 Adjustable Legs |
Yes |
Remaining Time Display/Status Indicator (s) |
Yes |
SmartDiagnosis™ (v3.0) |
Yes |
Wi-Fi |
Yes |
Remote start and cycle monitor |
Yes |
Energy Monitoring |
Yes |
Tub Clean Coach |
Yes |
SmartDiagnosis™ (v3.0) |
Yes |
Wi-Fi |
Yes |
Remote start and cycle monitor |
Yes |
Energy Monitoring |
Yes |
Motor Type |
Inverter Direct Drive Motor |
Axis |
Horizontal |
NeveRust™ Stainless Steel Drum |
Yes |
Control Panel |
Plastic |
Top Plate |
Steel |
Cabinet |
Painted Steel |
Door / Rim |
Large Circle Shiny Rose Gold Rim |
Door Cover |
Tinted Round Tempered Glass |
All Available Colors |
White (W), Graphite Steel (V) |
Aluminized Alloy Steel Drum |
Yes |
Control Panel |
Plastic |
Top Plate |
Steel |
Cabinet |
Painted Steel |
Door / Rim |
Large Circle Shiny Rose Gold Rim |
Door Cover |
Tinted Round Tempered Glass |
All Available Colors |
White (W), Graphite Steel (V) |
AAFA |
Yes |
Ratings |
CSA Listed |
Electrical Requirements |
120V, 10 Amps |
Type |
Electric |
Ratings |
CSA Listed |
Electrical Requirements |
120V, 15 Amps |
Type |
Gas |
BTU Rating |
20,000 Feet |
LP Conversion Kit |
383EEL3002D |
Side Venting Kit |
3911EZ9131X |

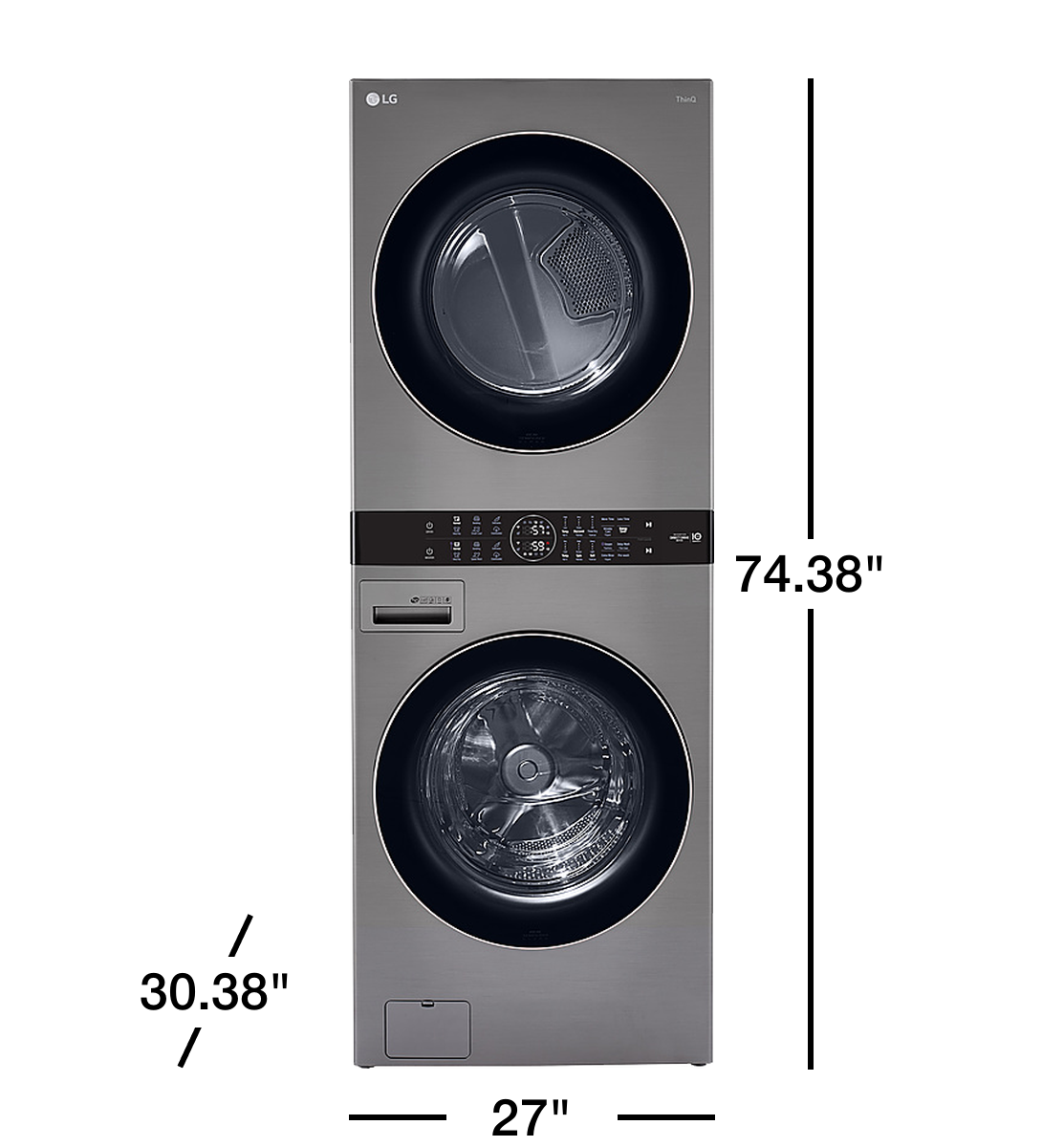

Product (WxHxD) |
27" x 74 3/8" x 30 3/8" (700mm x 1890mm x 770mm) |
Depth with Door Open |
(55" D with door open) |
Carton (WxHxD) |
30 1/16" x 79 11/32" x 32" (763 x 2015 x 813 (mm)) |
Weight (Product/Carton) |
311 lbs / 346 lbs |
Parts and Labor |
1 Year |
Direct Drive Motor |
10 Years |
Drum |
3 Years |
Parts and Labor |
1 Year |
Drum |
3 Years |
UPC |
048231029377 |
