Refrigerator (cu.ft.) |
16.9 |
CustomChill™ (cu.ft.) |
n/a |
Freezer (cu.ft.) |
8.6 |
Total Capacity (cu.ft.) |
25.50 |
Dispenser Type |
Integrated Tall Ice & Water Dispenser |
System Type |
Slim SpacePlus® |
Daily Ice Production |
3.0 lbs / 3.3 (Ice Plus) 0.7 lbs (Clear big ice) 1.5 lbs (Cubed mini ice) |
Craft Ice™ Daily Ice Production |
6 / 3 |
Ice Storage Capacity |
3.0 + 3.8 + 4.0 lbs |
Cube & Crushed Ice |
Yes |
IcePlus™ |
Yes |
Dual Ice |
No |
Dual Ice with Craft Ice™ |
Yes |
Water Filter |
LT1000P |
Measured Fill |
No |
UVNano™ |
Yes |
Dispenser Type |
Integrated Tall Ice & Water Dispenser |
Ice System |
Slim SpacePlus® |
Daily Ice Production (lbs) |
3.0 lbs. |

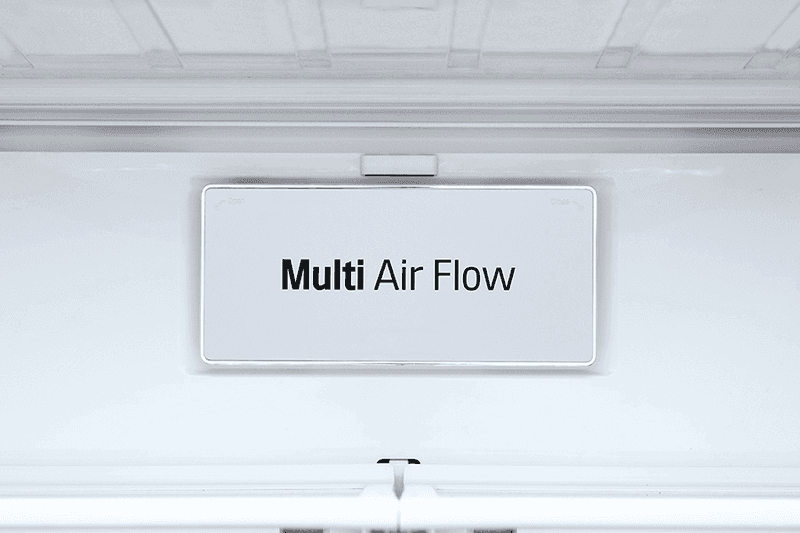

Multi Air Flow Cooling: |
Yes |
Temperature Sensors |
9 |
Compressor Type |
Inverter Linear Compressor |
Refrigerant [Name / Amount(g)]: |
Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 57g) |
Refrigerant [Name / Amount(oz)]: |
Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 2.01oz) |
Fresh Air Filter |
Yes |
FRESHShield™: |
No |
Evaporator |
1 |
Display Type |
Smooth Touch Control / White LED |
Temperature Controls |
Electronic/Digital |
Door Alarm |
Yes(Default) |
Child Lock |
Yes |
Decibel™ Quiet Operation |
Yes |
Smart Diagnosis |
Yes |
Auto Closing Door Hinge |
Yes |
wi-fi Enabled |
Yes |
ThinQ® |
Yes |
PCC (Proactive Customer Care) |
Yes |
Wifi Eclipse Display |
No |
Special Features |

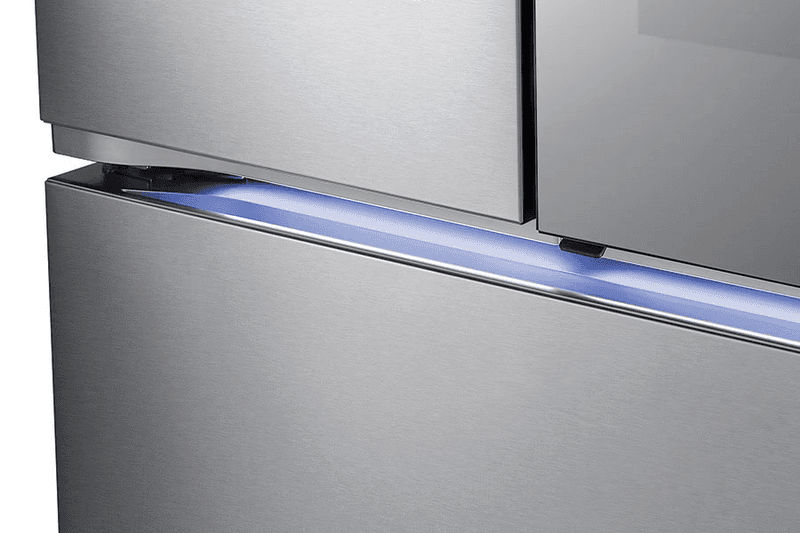

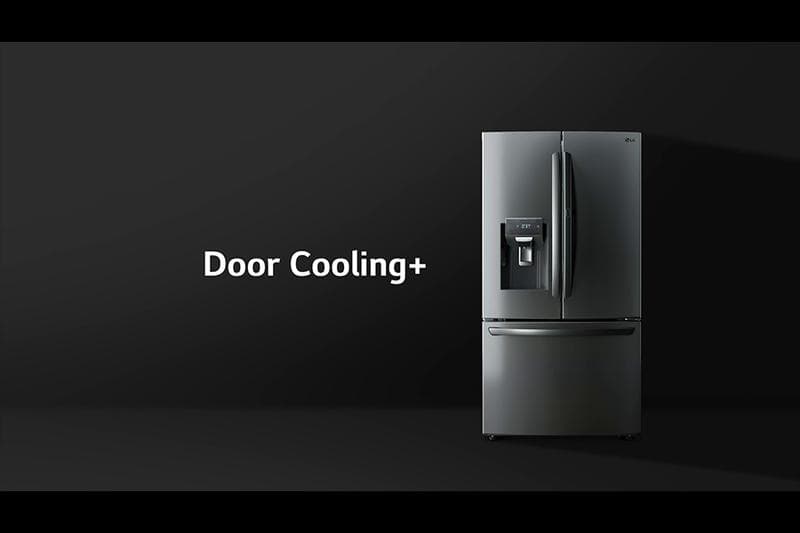

Door Cooling+ |
Sabbath |
Yes |
ADA Compliant |
N/A |

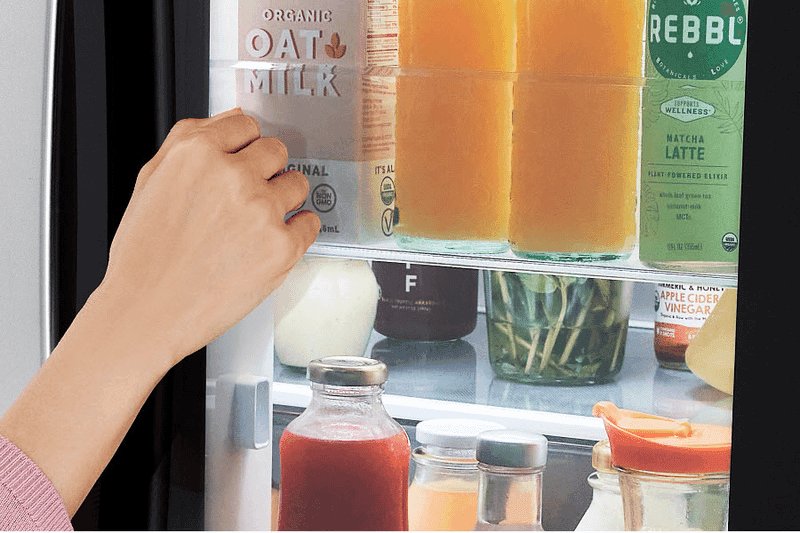

Door-in-Door®: |
Yes |
Door-In-Door® with ColdSaver™ Panel |
No |
No. of Shelves |
4 Split(3 Fixed+1Folding) |
Folding Shelf |
1 |
Cantilevered Shelves |
Hybrid Cantilevered |
Shelf Construction |
SpillProof™ Tempered Glass |
Crisper Bins |
2 Crispers |
Full-Convert™ Drawer |
No |
Glide N' Serve™ Drawer |
Yes |
Temperature Control Pantry |
No |
CoolGuard™ |
Yes |
EasyReach™ Bins |
No |
Auto Open Door™ |
No |
LUMIShelf™ |
No |
Dividers |
No |
Handle Type |
Bar |
CUSTOMCHILL™: |
No |
Glide N' Access™ Shelf |
No |
No. of Door Bins |
8 Total (2 Adjustable Gallon Sized) |
Door Bin Construction |
1 Piece (Clear) |
Dairy Corner/Bin |
No |
Dividers |
N/A |
Temperature Range |
N/A |
Handle Type |
N/A |
Door Type |
Pull Drawer |
Drawers / Shelves: |

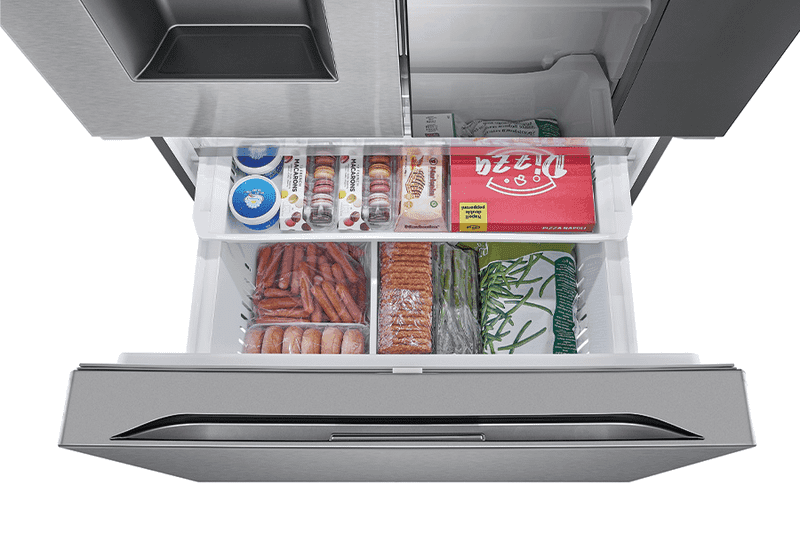

3-Tier Organization |
DuraBase™ Solid Drawer Base |
Yes |
Drawer Divider |
No |
Freezer Light Upper: |
LED Lighting |
Freezer Handle |
SmartPull™ Handle |
No. of Door Bins / Construction: |
N/A |
Ice Bin / In Door Ice: |
N/A |
Flat type Door |
Yes |
Hidden Hinges |
Yes |
Toe Grille |
No |
Surface |
Smooth |
Handles |
Matching Commercial Handles |
PrintProof™ Finish |
Stainless Steel |
Insulation |
Low GWP and Zero ODP Blowing Agent |

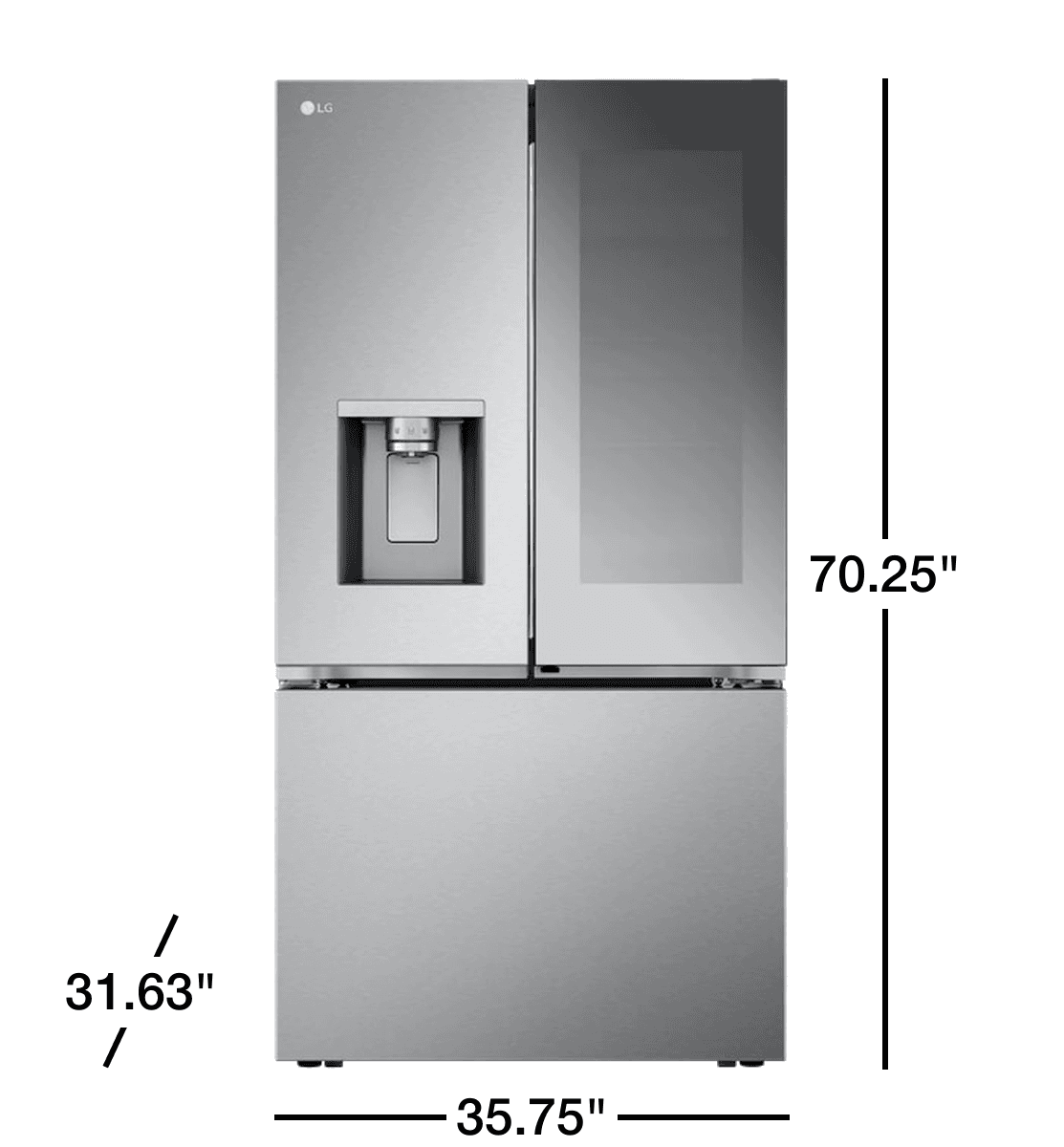

A. Width |
35 3/4" |
B. Height to Top of Hinge |
70 1/4" |
C. Depth with Handles |
31 5/8" |
D. Width (Door Open 90 without Handle) |
40" |
F. Width (Door Open 90 with Handle) |
44 7/8" |
H. Door Edge Clearance with Handle |
4 1/4" |
I. Door Edge Clearance without Handle |
2 1/4" |
J. Height to Top of Case |
68 7/8" |
L. Depth without Door |
24 3/4" |
M. Depth without Handles |
29 1/8" |
Q. Depth (Total with Door 90 Open) |
43 5/8" |
P. Depth (Draw Open Fully without Handle) |
48 7/8" |
Installation Clearance |
Sides 1/8", Top 1", Back 2" |
Weight (Unit/Carton) |
333 lbs / 363 lbs |
Carton Dimensions (WxHxD) |
38" x 73" x 32" |
UPC |
S - 195174034828 D - 195174037669 |
Parts & Labor |
1 Year |
Sealed System (Parts & Labor) |
5 Years |
Compressor (Parts & Labor) |
5 Years |
Linear Compressor (Parts & Labor): |
6-10 Years |
