Cooking modes Convection.
Economy convection.. Top + bottom heat. Top + 1/3 bottom heat. Top heat. 1/3 top + bottom heat. Bottom heat. Convection + bottom heat. Convection + 1/3 bottom heat. Convection broiling.. Broiling. Compact grill. Baking stone operation. Roaster function. Dough proofing. Defrosting. Keeping warm.
Operation One touch control panel and an interactive visual display.
Rotary knob and TFT touch display operation.
Clear text display in 44 languages.
Option to save 50 individual recipes (incl. core temperature probe)
Personalization of automatic programs.
Information key with use indicators.
Side-opening door opens up to 180(degree) angle.
Features Three-point core temperature prove with automatic shut-off and estimation of cooking time.
Automatic programs.
Rotisserie spit.
Baking stone outlet.
Actual temperature display.
Fast heating setting.
60 W halogen light on the top.
2 x 10 W halogen light on the side.
Enamelled side shelf supports with 5 tray levels, pyrolysis-safe.
Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Safety Thermally insulated door with quadruple glazing.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Cleaning Pyrolytic self-cleaning.
Gaggenau Clean-Enamel.
Heated air cleaning catalyst.
Planning notes Door hinge not reversible.

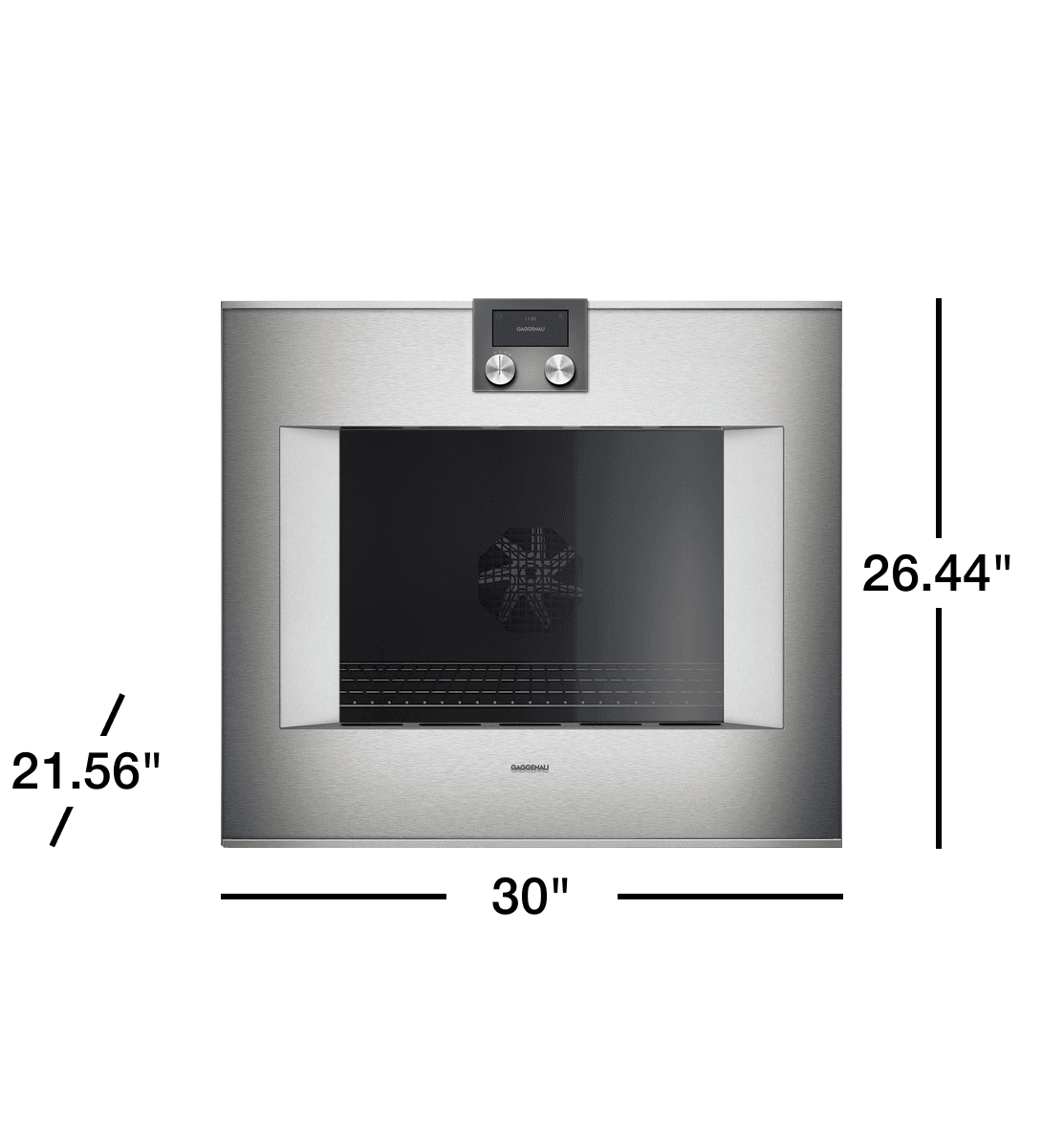

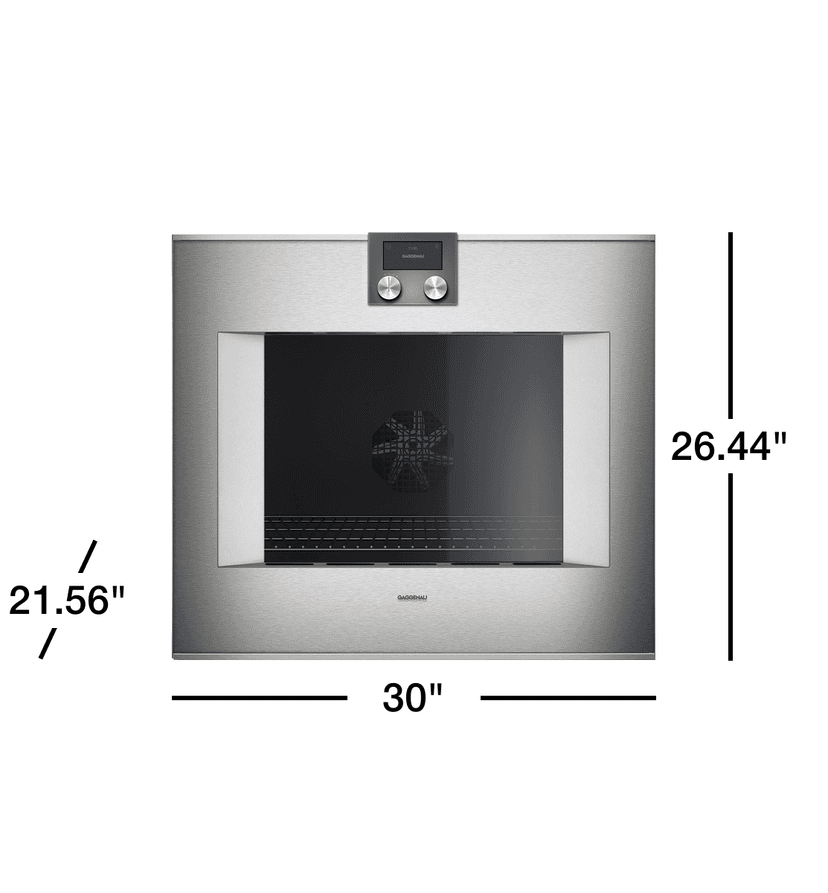

The front of the appliance extends 1 7/8" from the cabinet front.
Consider the overhang when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 90(degree) door opening angle.
To achieve the 21 5/8" installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
Plan a power outlet outside of the
cut-out niche.
The LAN port can be found at the back on the upper right side.
Rating Total rating 5.5 KW.
Total Amps: 25 A.
110-120 V / 220-240 V / 60 Hz.
Connecting cable 47 1/4 without plug (hardwire required).
Plan for an ethernet / LAN cable or connect via WiFi.
