FORNO Lazio 30" Freestanding Dual Fuel Range

• 5 Sealed Burners
• 1 Sealed Dual-Ring Burner
• Continuous Cast Iron Grates
• Black Enamel Cooktop
• 4.32 Cu.Ft Electric True Convection Oven
• Smooth Oven Hinges
• 5 Sealed Burners combine a total stove-top output of 70,000 BTU
• Includes 1 Sealed Dual-Ring Burner to achieve high heat searing or delicate simmering control
• Continuous Cast Iron Grates provide even heat distribution and stable cookware mobility
• Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups
• 4.32 Cu.Ft True Convection Fan Oven with 6,500 Watt Total Broil and Bake output
• Insulated Oven Door with a 3-Layer Glass Window and Smooth Friction Hinges
• Black Enamel Oven Interior with 2 Halogen Lights
• 2 Electro-Plated Oven Racks with 7.5mm frame and 4.5mm grid
• Pro-Style Handle and Zinc Coated Metal Control Knobs and Bezel Rings
• Sleek, Durable Design Stainless-Steel Body
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5 to 36.5
• Includes Air Fryer Rack, Basket & Drip Pan, Cast Iron Wok-Ring, Reversible Grill/Griddle & LP conversion kit.

The Lazio 30" Alta Qualita Freestanding Dual Fuel Range brings professional styling and performance into your kitchen with its durable stainless-steel design. Cooking Surface has 5 sealed burners with a total output of 70,000 BTU and includes 1 powerful sealed dual-ring burner for boiling or searing and is able to perform simmering like melting chocolate or sauces, . Features continuous cast iron grates, wok ring and reversible grill/griddle. The 30 oven has a capacity of 4.32 cu. ft. with a combined convection broil and bake output of 6500 Watt. An insulated 3-layer glass oven door window allows view into oven and safety. The true convection element and fan achieves fast, precision and consistent oven cooking. Included are 2 oven racks, an air fry rack & basket, drip pan that can be used for steam cleaning in the oven and LP conversion kit. Additionally, zinc coated metal knobs with bezel rings will maintain their beauty for years. All FORNO products come with a 2 year warranty.

Product Name	LAZIO
Product UPC	686136 961295
Product Type	Freestanding
Color/Finish	Stainless Steel
Fuel Type	Gas & Electric
Gas Type	Natural Gas
LP Gas Convertible	Yes
LP Kit Included	Yes
Gas Heat Configuration	Sealed Burner
Number of Burners	5
Cooktop Surface	Continuous Cast Iron Grates
Cooktop Cavity	Recessed Enamel
Number of Ovens	1
Oven Interior Finish	Black Enamel
Number of Racks	2
Number of Rack Positions	8
Broiler	Electric
Bake Element	Electric
Cooking Process	True Convection
Cleaning Type	Steam
Interior Light	2
Control Type	Knob
Control Location	Front
Temperature Gauge	No
Timer	No
Clock	No
Primary Material	Metal
Door Panel Material	Stainless Steel
Control Panel Material	Stainless Steel
Kick Plate Material	Stainless Steel
Side Panel Material	Stainless Steel
Wok-Ring	Yes
Reversible Grill/Griddle	Yes
Air Fryer Kit	Yes
Rotisserie Kit	No
Supplier Intended and Approved Use	Residential Use
Country of Origin	China
Total Stovetop BTU / Watts	70,000 BTU
Middle Burner	19,000 BTU
Front Right	16,000 BTU
Front Right Center	Does Not Apply
Front Center	Does Not Apply
Front Left Center	Does Not Apply
Front Left	Does Not Apply
Rear Right	9,500 BTU
Rear Right Center	Does Not Apply
Rear Center	Does Not Apply
Rear Left Center	Does Not Apply
Rear Left	Does Not Apply
Number of Knob	7
Switches	0 + 1
Overall Oven Capacity	4.32 Cubic Feet
Overall Broil Top	Does Not Apply
Overall Bottom	Does Not Apply
Right Oven Capacity	Does Not Apply
Right Broil Top	Does Not Apply
Right Bottom	Does Not Apply
Left Oven Capacity	Does Not Apply
Left Broil Top	Does Not Apply
Left Bottom	Does Not Apply
Convection Fan	Yes
Amperage	30
Volts	240
Wattage	6500
Oven 1 inside Broil Wattage	1000
Oven 1 Outside Broil Wattage	2000
Oven 1 Bake Wattage	2000
Oven 1 True Convection Wattage	1500
Oven 2 inside Broil Wattage	Does Not Apply
Oven 2 Outside Broil Wattage	Does Not Apply
Oven 2 Bake Wattage	Does Not Apply
Oven 2 Convection Heater Wattage	Does Not Apply
Power Cord Length	5 feet
Receptacle Type	4-Prong Grounded
Overall Weight (LBS)	198
Overall Weight (KG)	89.8128

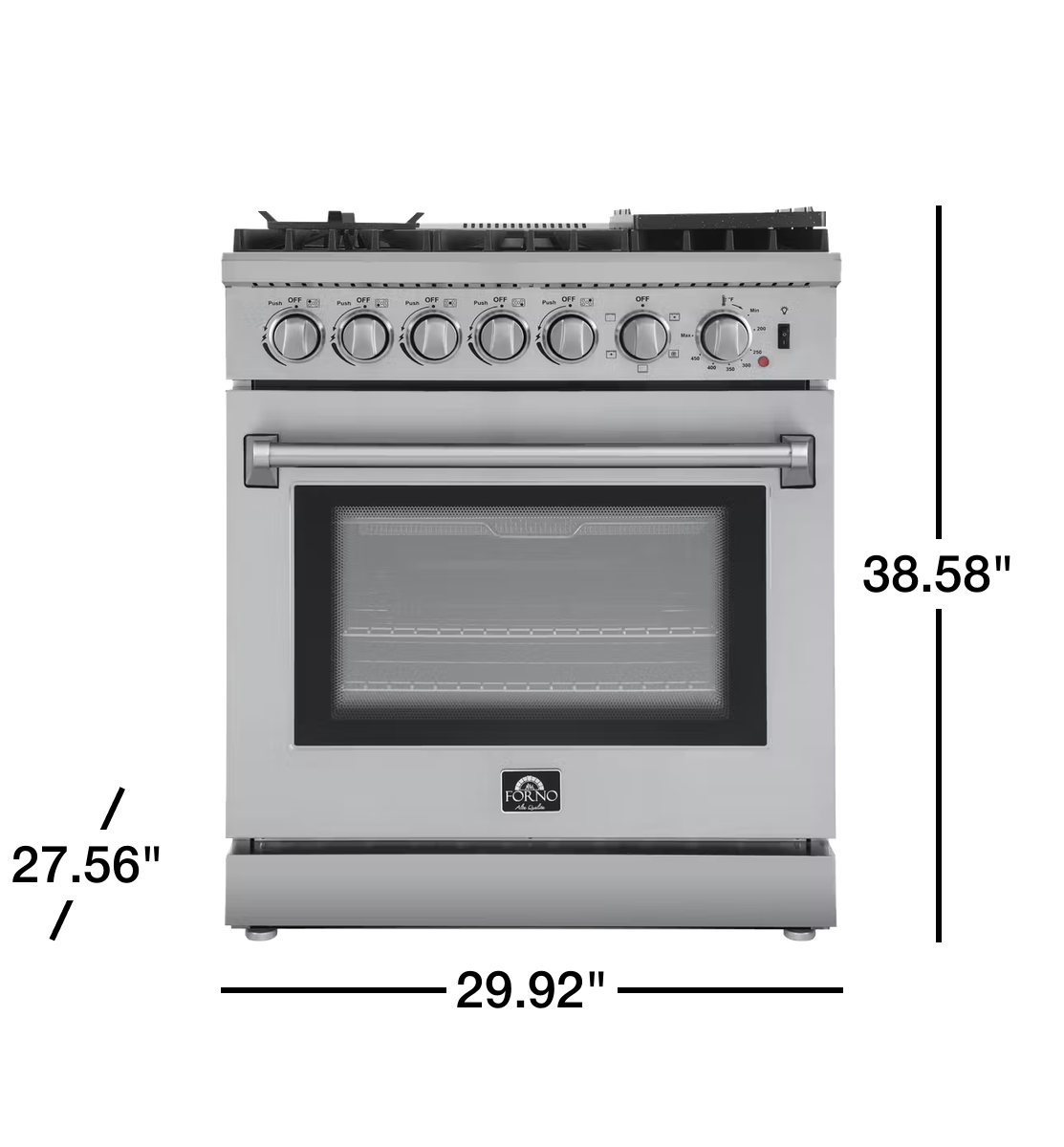

Overall WxDxH (IN)	30 x 27.56 x 38.58
Overall WxDxH (CM)	76.2 x 70 x 98
Product Width (I)	30
Product Width (CM)	76.2
Product Depth (I)	27.56
Product Depth (CM)	70.0024
Product Height (I)	38.58
Product Height (CM)	97.9932
Minimum Counter Height (IN)	35.5
Minimum Counter Height (CM)	90.17
Maximum Counter Height (IN)	36.5
Maximum Counter Height (CM)	92.71
Depth with Oven Door Open 90 (IN)	48
Depth with Oven Door Open 90 (CM)	121.92
Oven Interior Width (IN)	29.92
Oven Interior Depth (CM)	75.9968
Oven Interior Depth (IN)	18.7
Oven Interior Depth (CM)	75.9968
Oven Interior Height (IN)	17
Oven Interior Height (CM)	43.18
Left Oven Interior Width (IN)	Does Not Apply
Left Oven Interior Depth (CM)	Does Not Apply
Left Oven Interior Depth (IN)	Does Not Apply
Left Oven Interior Depth (CM)	Does Not Apply
Left Oven Interior Height (IN)	Does Not Apply
Left Oven Interior Height (CM)	Does Not Apply
CSA Certified	Does Not Apply
ETL Listed	Yes
UL Listed	Does Not Apply
Title 20 - California Regulation	Does Not Apply
ADA Compliant	Does Not Apply
Star-K Certified	Does Not Apply
Commercial Warranty	No
Warranty Type	Limited
Warranty Length	2 Years
Warranty on Parts	2 Years
Warranty on Labor	2 Years

• FFSGS6196-30 Catalog Sheet

• FFSGS6196-30 Cutout

• FFSGS6196-30 User Manual
