FORNO Forno Galiano - 48" Freestanding Gas Range

• 8 Sealed Burners
• Includes 1 Sealed Dual-Ring Burner to achieve high heat searing or delicate simmering control
• Continuous Cast Iron Grates
• Recessed Black Enamel Cooktop
• 4.32 Cu.Ft Convection Fan Oven, additional 2.26 Cu.Ft. Oven
• Smooth Friction Hinges
• 8 Sealed Burners combine a total stove-top output of 107,000 BTU
• Includes 1 Sealed Dual-Ring Burner to achieve high heat searing or delicate simmering control
• Continuous Cast Iron Grates provide even heat distribution and stable cookware mobility
• Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups
• 4.32 Cu.Ft Convection Fan Oven with 30,000 BTU Total Broil and Bake output, additional 2.26 Cu.Ft. Oven with a 14,000 BTU Bake output.
• Insulated Oven Doors with 3-Layer Glass Windows and Smooth Friction Hinges
• Black Enamel Oven Interiors with U Tube Auto-Ignition and 2 Halogen Lights
• 4 Electro-Plated Oven Racks with 7.5mm frame and 4mm grid construction.
• Pro-Style Handle and Zinc Coated Metal Control Knobs and Bezel Rings
• Sleek, Durable Design Stainless-Steel Body
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5 to 36.5
• Includes Cast Iron Wok-Ring, Reversible Grill/Griddle, LP conversion kit and 3-Prong Plug

The 48 Forno Galiano Gas Range brings professional styling and performance into your home kitchen with its durable stainless-steel design. Cooking Surface has 8 sealed burners with a total output of 107,000 BTU. including 1 powerful sealed dual-ring burner for boiling or searing and is able to perform simmering for melting chocolate or sauces, The continuous cast iron grates allow maximum stability of cookware allow ease of sliding pan off a hot burner. A sealed recessed enamel Cooking Surface cavity which keeps spills and splashes contained and easy to clean. Oven doors have tempered 3-layer glass windows for viewing and safety. Right-side oven consists of a convection fan function for premium baking or roasting. All FORNO gas ranges Include a LP conversion kit. The 48" Galiano has a heavy duty cast iron reversible grill/griddle, 4 oven racks, and LP conversion kit. Additionally, zinc coated metal knobs with bezel rings will maintain their beauty for years. All FORNO products come with a 2 year warranty.

Product Name	GALIANO
Product UPC	686136 962544
Product Type	Freestanding
Color/Finish	Stainless Steel
Fuel Type	Gas
Gas Type	Natural Gas
LP Gas Convertible	Yes
LP Kit Included	Yes
Gas Heat Configuration	Sealed Burner
Number of Burners	8
Cooktop Surface	Continuous Cast Iron Grates
Cooktop Cavity	Recessed Enamel
Number of Ovens	2
Oven Interior Finish	Black Enamel
Number of Racks	4
Number of Rack Positions	2 x 6
Broiler	Gas
Bake Element	Gas
Cooking Process	Convection
Cleaning Type	Manual
Interior Light	2
Control Type	Knob
Control Location	Front
Temperature Gauge	No
Timer	No
Clock	No
Primary Material	Metal
Door Panel Material	Stainless Steel
Control Panel Material	Stainless Steel
Kick Plate Material	Stainless Steel
Side Panel Material	Stainless Steel
Wok-Ring	No
Reversible Grill/Griddle	Yes
Air Fryer Kit	No
Rotisserie Kit	No
Supplier Intended and Approved Use	Residential Use
Country of Origin	China
Total Stovetop BTU / Watts	107,000 BTU
Middle Burner	Does Not Apply
Front Right	1000 BTU to 20,000 BTU
Front Right Center	15,000 BTU
Front Center	Does Not Apply
Front Left Center	15,000 BTU
Front Left	15,000 BTU
Rear Right	15,000 BTU
Rear Right Center	9,000 BTU
Rear Center	Does Not Apply
Rear Left Center	9,000 BTU
Rear Left	9,000 BTU
Number of Knob	10
Switches	1 + 2
Overall Oven Capacity	6.58 Cubic Feet
Overall Broil Top	10,000 BTU
Overall Bottom	34,000 BTU
Right Oven Capacity	4.32 Cubic Feet
Right Broil Top	10,000 BTU
Right Bottom	20,000 BTU
Left Oven Capacity	2.26 Cubic Feet
Left Broil Top	Does Not Apply
Left Bottom	14,000 BTU
Convection Fan	Yes
Amperage	15
Volts	120
Wattage	Does Not Apply
Oven 1 inside Broil Wattage	Does Not Apply
Oven 1 Outside Broil Wattage	Does Not Apply
Oven 1 Bake Wattage	Does Not Apply
Oven 1 True Convection Wattage	Does Not Apply
Oven 2 inside Broil Wattage	Does Not Apply
Oven 2 Outside Broil Wattage	Does Not Apply
Oven 2 Bake Wattage	Does Not Apply
Oven 2 Convection Heater Wattage	Does Not Apply
Power Cord Length	5 feet
Receptacle Type	3-Prong Grounded
Overall Weight (LBS)	389
Overall Weight (KG)	176.4504

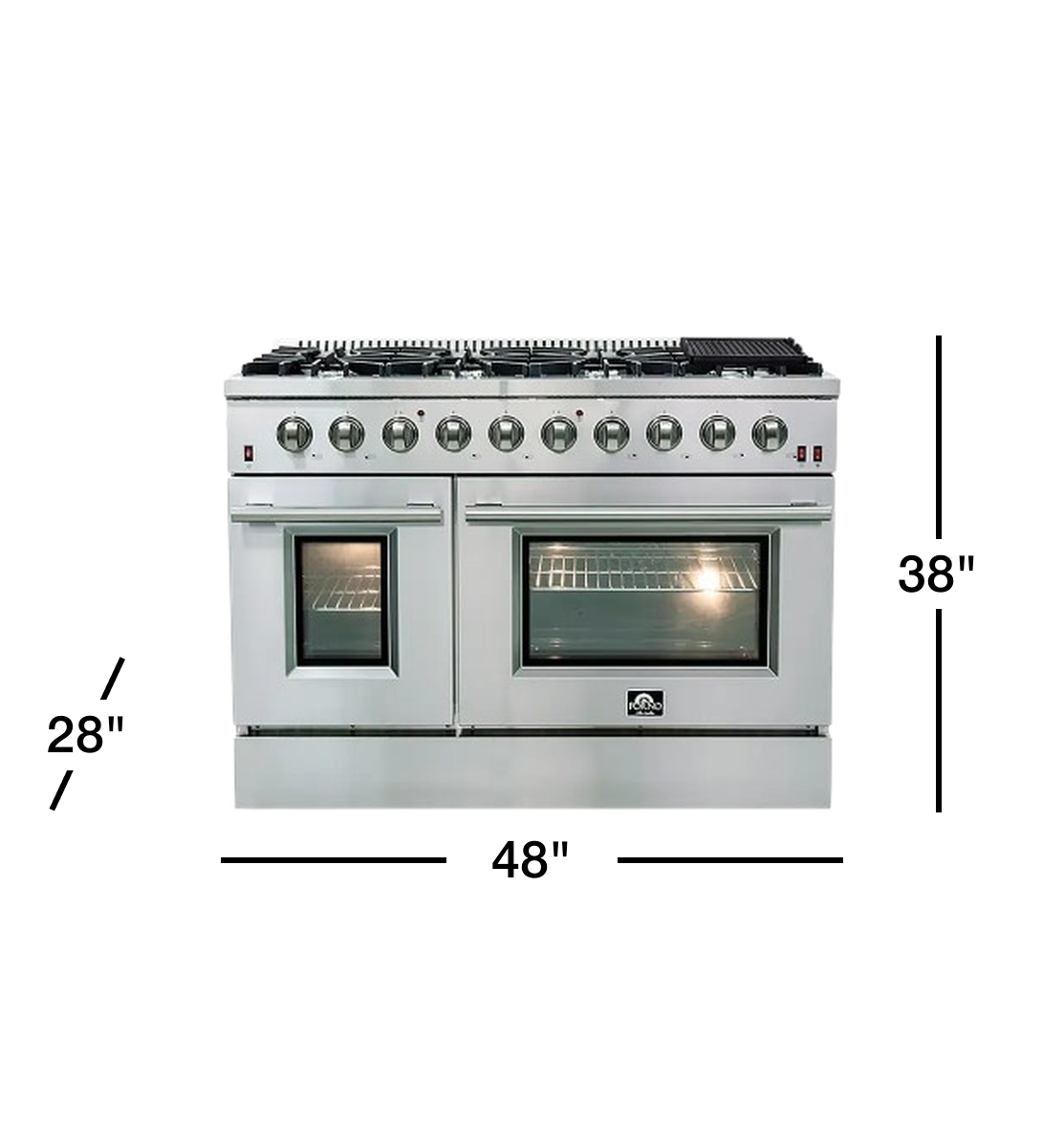

Overall WxDxH (IN)	48 x 28 x 38
Overall WxDxH (CM)	121.92 x 71.12 x 96.52
Product Width (I)	48
Product Width (CM)	121.92
Product Depth (I)	28
Product Depth (CM)	71.12
Product Height (I)	38
Product Height (CM)	96.52
Minimum Counter Height (IN)	35.5
Minimum Counter Height (CM)	90.17
Maximum Counter Height (IN)	36.5
Maximum Counter Height (CM)	92.71
Depth with Oven Door Open 90 (IN)	44.25
Depth with Oven Door Open 90 (CM)	112.395
Oven Interior Width (IN)	24.92
Oven Interior Depth (CM)	63.2968
Oven Interior Depth (IN)	18.7
Oven Interior Depth (CM)	63.2968
Oven Interior Height (IN)	16
Oven Interior Height (CM)	40.64
Left Oven Interior Width (IN)	13.03
Left Oven Interior Depth (CM)	33.0962
Left Oven Interior Depth (IN)	18.7
Left Oven Interior Depth (CM)	33.0962
Left Oven Interior Height (IN)	17
Left Oven Interior Height (CM)	43.18
CSA Certified	Does Not Apply
ETL Listed	Yes
UL Listed	Does Not Apply
Title 20 - California Regulation	Does Not Apply
ADA Compliant	Does Not Apply
Star-K Certified	Does Not Apply

• FFSGS6244-48 Cutout

• FFSGS6244-48 Instruction Manual

• FFSGS6244-48 Product Sheet
