WiFi Connect |
Built-In |
Grill |
Optional JXCGRILL1 Integrated Cast Iron |
Sabbath Mode |
Yes |
Fuel Type |
240V Electric and Natural Gas |
Connected Capabilities |
The Google Assistant Sonos Innit IFTTT Drop DiGiorno Amazon Alexa |
Cooktop Burner Grate Features |
Heavy-Cast Edge-to-Edge Grates |
Cooktop Burner Grate Material |
Cast-Iron |
Self-Clean Oven Door Lock |
Automatic |
Cooktop Type |
Standard Grates |
Style |
Commercial |
Ignition System |
Electronic w/Auto Reignition |
Cleaning Time |
Variable with Delay Clean Option |
Leveling System |
4 Leveling Legs |
Oven Rack Features |
6 Rack Positions 2 Self-Clean Flat Oven Racks (Lower) 1 Roller Rack (Upper) |
Oven Interior |
Hidden Bake Black 2 Oven Interior Lights |
Cooktop Burner Type |
Sealed |
Cooking Technology |
Traditional Upper; Convection Lower |
Configuration |
Double Oven Range |
Product Type |
Slide-In Double Oven |
Burner - Right Rear |
12,000 BTU |
Oven Cleaning Type |
Self-Clean with Steam Clean Option |
Valves (Degree of Turn) |
270 |
Cooking System |
True European Precise Air Reversing |
Burner - Left Front |
21,000 BTU Tri-ring Burner |
Burner - Right Front |
15,000 BTU |
Dishwasher Safe Knobs |
Yes |
Lower Oven Features |
Dual element bake |
Oven Features |
8-Pass Broil Element 6-Pass Broil Element |
Griddle |
Integrated Cast Iron Included |
Oven Control Features |
Temperature Probe Self-Clean Cool Down Time Display In-Oven Broiling Front Controls Electronic Clock and Timer Digipad Numeric Entry Delay Clean Option Delay Bake Option (Time Bake) Control Lock Capability Chef Connect Certified Sabbath Mode Automatic Oven Timer (Time Bake) Auto Self Clean Auto Oven Shut-Off Audible Preheat Signal |
Control Type |
Glass Touch Backlit |
Cooktop Surface |
Stainless Steel Deep Recessed |
Burner - Center |
9,500 BTU Front / 9,500 BTU Rear |
Control Location |
Front controls |
Burner - Left Rear |
5,000 BTU Precise Simmer |
Oven Cooking Modes |
Warming (Both Ovens) Proof (Lower Oven) Frozen Snacks Single Rack- Lower Oven (No Preheat) Frozen Snacks Multi Rack - Lower Oven Frozen Pizza Single Rack - Lower Oven (No Preheat) Frozen Pizza Multi Rack - Lower Oven Convection Roast Convection Bake Baked Goods - Both Ovens |
Trim Kit |
Optional JXFILLR1SS |
Optional Kits |
CXFCGHKPMCU Brushed Copper CXFCGHKPMBZ Brushed Bronze CXFCGHKPMBT Brushed Black |
LP Conversion Kit |
Included |
Grates |
Included Center Grate |
Frameless Oven Door(s) |
Stainless Steel |
Control Knobs |
Weighted Stainless Steel Appearance |
Handle Design |
Café |
Handle |
Professional Style Customizable Consumer Removable |
Oven Door Features |
Stainless Steel Frameless Oven Door Big Clear View Oven Window |
Handle Color |
Brushed Stainless |
Cooktop Burner Grate Color |
Matte Black |
Installation |
Power Cord Not Included Free-standing cut-out Flush Appearance |
Color Appearance |
Stainless Steel |
Total Capacity (cubic feet) |
7.0 cu ft |
Capacity (Cu. Ft.) |
2.7 Upper / 4.3 Lower |
Volts/Hertz/Amps |
208/240V; 60Hz; 30A |
Broiler Wattage |
3000W Upper / 3600W Lower |
Amp Rating at 240V |
30 |
Top Burner BTU Rating - LP (000's BTU's) |
(1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0; |
Power Connection |
Power Cord - Not Included |
Bake Wattage |
2650W Upper / 2650W Lower |
Convection Wattage |
2500W |
Amp Rating at 208V |
30 |
Top Burner BTU Rating - Nat. Gas (000's BTU's) |
(1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
Warranty Notes |
See written warranty for full details |
Parts Warranty |
Limited 1-year entire appliance |
Labor Warranty |
Limited 1-year entire appliance |

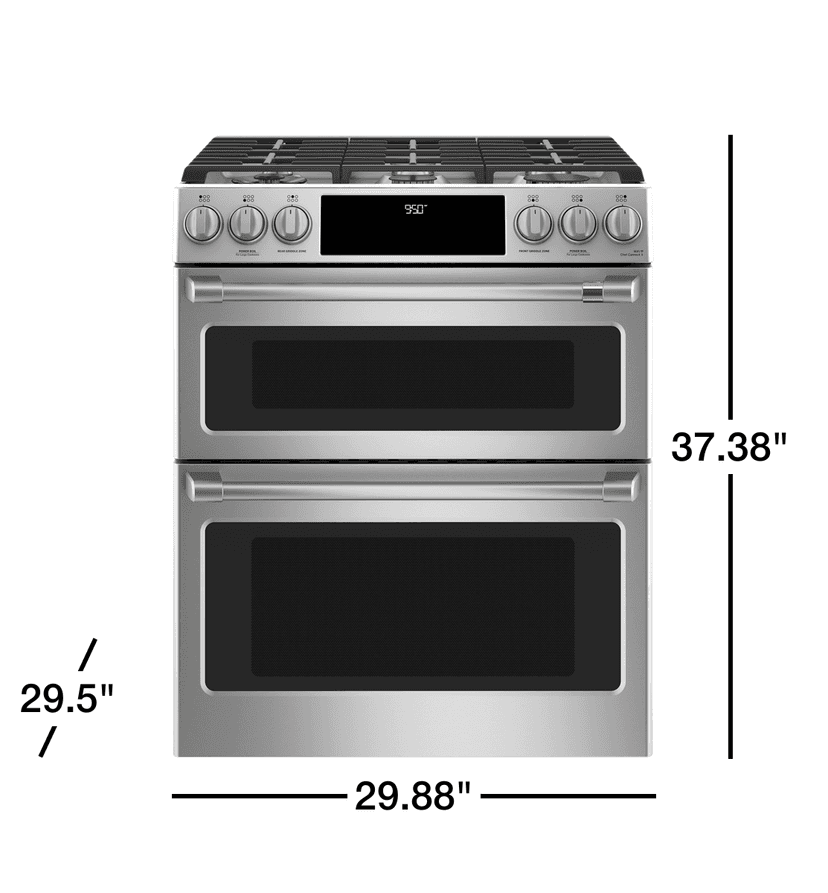

Cabinet Width |
30.0 in |
Overall Height |
37.375 in |
Height to Top of Rear Vent Trim |
37.375 in |
Height to Cooking Surface (in.) |
36 1/4 +/- 1/4 |
Cabinet Opening |
30.0 in |
Net Weight |
271.0 lb |
Overall Width |
29.875 in |
Depth Without Handle |
26.875 in |
Overall Depth |
29.5 in |
Oven Interior Dimensions (W x H x D) (in.) |
24 x 10-1/8 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
Depth with Door Open |
43.875 in |
