Cooktop type |
Radiant cooktop |
Self-sufficient cooker control |
Self-sufficient electro hobs |
Type of appliance width |
75 cm |
Total number of cooktop burners |
5 |
Dimensions of the heating elements |
1 x 16,0 cm , 1 x 18,0 cm , 1 x 23,0 cm , 2 x 14,0 cm |
Power of the heating elements |
1 x 1.5 KW, 1 x 2.0 KW, 1 x 3.6 KW, 2 x 1.2 KW |
Basic surface material |
Ceramic |
Frame type |
Standard design |
Variant color |
Black |
Home Connect |
|
Hob-based hood control |
|
Dimensions |
100 x 788 x 540 mm |

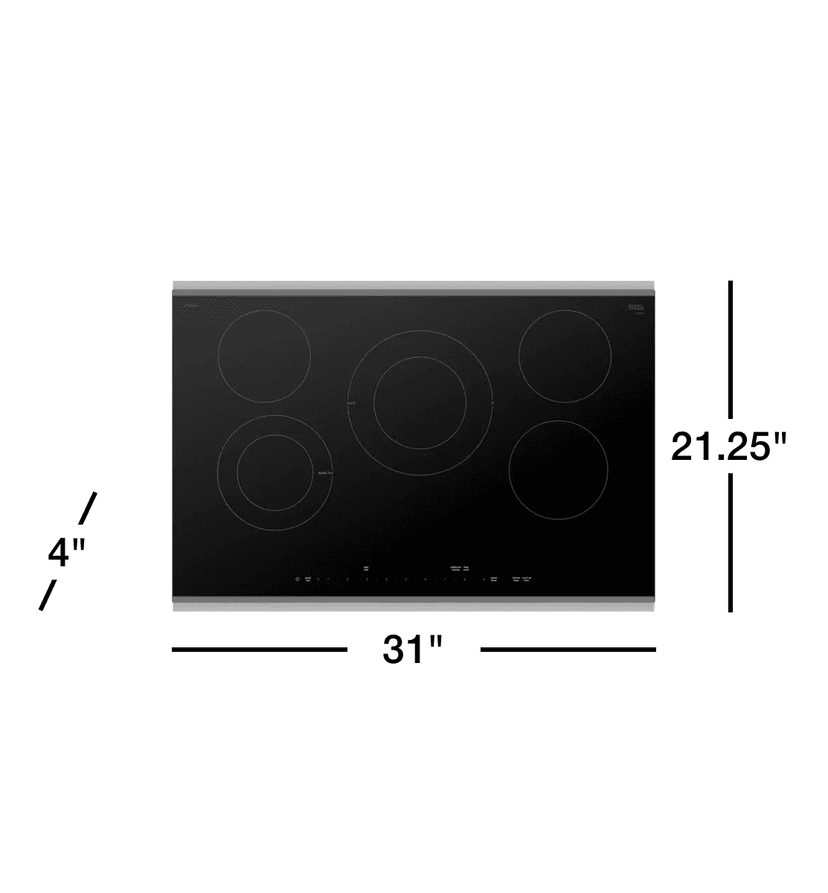

Overall appliance dimensions (HxWxD) (in) |
1/4" + 4 " x 31" x 21 1/4" |
Net weight |
12.3 kg |
Net weight |
27.000 lbs |
Minimum distance from counter front (in) |
2 1/4 |
Minimum distance from rear wall (in) |
2 |
Dimension of 1st heating element (in) |
5" ; 7" |
Location of heating element |
front left |
Power of heating element (W) |
0.8 ; 2 kW |
Type of heating element |
Radiant heating |
Dimension of 3rd heating element |
140 mm |
Dimension of 3rd heating element (in) |
6" |
Location of 3rd heating element |
back left |
Power of 3rd heating element (W) |
1.2 kW |
Type of 3rd heating element |
Radiant heating |
Location of 4th heating element |
middle back |
Dimension of 5th heating element |
140 mm |
Dimension of 5th heating element (in) |
6" |
Location of 5th heating element |
back right |
Power of 5th heating element (W) |
1.2 kW |
Type of 5th heating element |
Radiant heating |
Location of 6th heating element |
center right |
Dimension of 7th heating element |
160 mm |
Dimension of 7th heating element (in) |
7" |
Location of 7th heating element |
front right |
Power of 7th heating element (kW) |
1.5 kW |
Type of 7th heating element |
Radiant heating |
Location of 8th heating element |
front middle / central |
Dimension of 9th heating element |
140 ; 230 mm |
Dimension of 9th heating element (in) |
6" ; 9" |
Location of 9th heating element |
front centre/cent |
Power of 9th heating element (kW) |
1.4 ; 3.6 kW |
Type of 9th heating element |
Radiant heating |
Color of frame |
Stainless steel |
Color of surface |
Black, Stainless steel |
Construction type |
Built-in |
Number of electric elements |
0 |
Number of electric cooking zones |
5 |
Type of frame |
Profiles front+rear |
Number of halogen elements |
0 |
Installation Type |
Built-in |
Total number of cooktop burners |
5 |
Number of radiant elements |
5 |
Number of electric warming zones |
0 |
Residual heat indicator |
Separate |
Safety device |
childproof lock, Key Lock, Safety time-switch-off |
Frequency |
60 Hz |
Energy source |
Electric |
Power cord length |
96.0 cm |
Watts |
9,000 W |
High-end Stainless Steel Frame for a Premium Look |
|
Cooktop Design Coordinates with Bosch Ovens and Ventilation |
|
AutoChef™ Sensor - A Bosch Exclusive. Maintains Exact Frying Temperature for Perfect Results and Convenient, Healthy Cooking. |
|
Five Burner 30" Cooktop--Same Versatility of 36" Cooktop in Compact 30" Format. For Kitchens Where Space is Limited |
|
Dual Elements Offer the Capability to use Multiple Pan Sizes |
|
PreciseSelect® Premium - Direct Cooking Level Selection (17 Settings) |
|
Count Up Timer - Stopwatch Function That Enables Close Monitoring of the Progress of Each Dish |
|
CleanLock - Prevents Unwanted Changing of Settings While Cleaning Spills |
|
Keep Warm Function - Allows Meals to Remain Ready to Serve |
|
ReStart - Quickly Reinstates Previous Settings |
|
Two-Level Heat Indicator - Warns if Cooktop is Warm or Hot |
|
ChildLock - Prevents the Cooktop from Being Accidentially Switched on. Locks Temperature Settings if in Use. |
|
