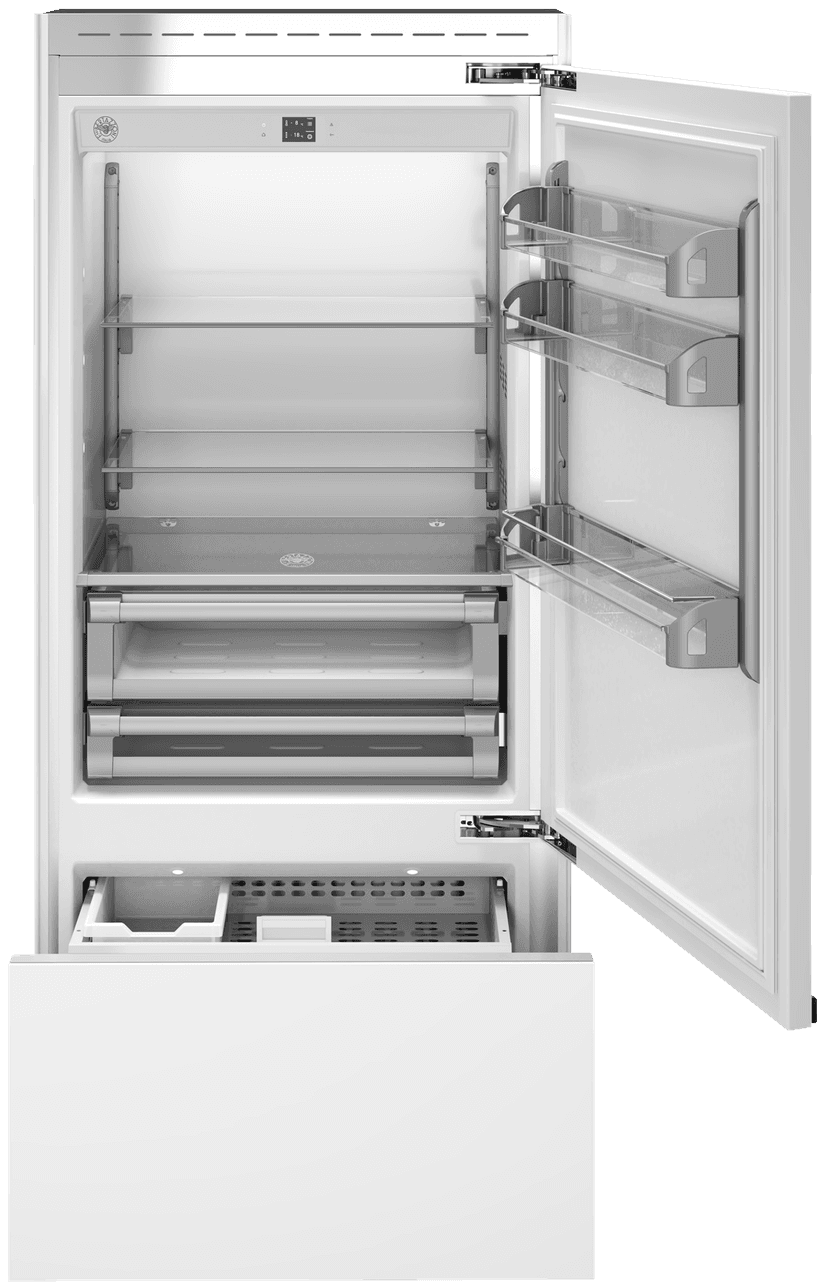

BERTAZZONI 36 inch built-in Bottom Mount Refrigerator with ice maker, panel ready Panel Ready

• Proprietary lift & swing door hinge system for true flush installation
• Lateral airflow system, with dual compressor and evaporator
• Category-leading interior depth
• FlexMode Refrigerator-Freezer allows to switch the bottom compartment between freezer, fresco and refrigerator with one touch
• Interior LED lighting on top and sides
• All metal and glass construction inside and out for longer durability and better temperature management
• 3 Lb per day automatic ice maker with water filter and cube size selector
• Super freeze mode

Built to last

(BR)(BULL)All metal and glass construction inside and out for longer durability and better temperature management(BR)(BULL)Perfect illumination LED surround lighting(BR)(BULL)Full-clad stainless steel door with proprietary hinge solution developed long term door alignment and balance

Optimized for continuing freshness

(BR)(BULL)Dual variable-speed compressors and dual evaporators (BR)(BULL)Lateral airflow design ensures better temperature control by reducing cold air loss when opening doors(BR)(BULL)Automatic ice-maker with filter and custom ice-cube size selection(BR)(BULL)Super-freeze mode option for 20% faster freezing cycle of fresh food

True flush installation

(BR)(BULL)Both stainless and panel-ready models install flush with any cabinet type(BR)(BULL)Seamless side-by-side installation kit to create personalized refrigeration solutions(BR)(BULL)Proprietary "lift and swing" hinges require minimal clearance to nearby cabinetry for opening and closing doors

Bertazzoni built-in refrigerators are designed, engineered and made in Italy with the highest grade materials and components. The proprietary lift & swing door hinge system makes them the ideal choice for true flush installation as a single unit or side-by-side. These refrigerators integrate seamlessly with all other Bertazzoni appliances into style-harmonized suites for a true, high-performing kitchen.

These built-in refrigerators are built to last, employing metal and glass inside and out for better temperature management. The lateral airflow system, with dual compressor and evaporator for refrigerator and freezer, reduces cold air loss when opening doors and allows for category-leading interior depth. The internal configuration is designed for maximum flexibility, with 15 cubic feet of refrigerator volume and 4.6 cubic feet of FlexMode volume. The FlexMode Refrigerator-Freezer allows to switch the bottom compartment between freezer, fresco and refrigerator with one touch. Interior LED lighting on top and sides provide bright interior illumination on all levels with minimal energy consumption. Integrated water filter connected to water line ensures regular production of clean ice cubes of customizable size.

To mount a Bertazzoni handle kit on a custom kitchen cabinet panel; use brass threaded inserts

This product is covered by a 2 years parts and labor warranty and 5 years warranty for the entire sealed system.

See predecessor model here

• REF36BMBIPLT Specifications Sheet

• REF36BMBIPRT Specifications Sheet

• REF36BMBI User Manual

• REF36BMBI Installation Manual

• REF36BMBIPLT Installation Drawing

• REF36BMBIPRT Installation Drawing

• REF36BMBIPLT Energy Guide

• Dimension Diagram

• Specifications PDF
