SUMMIT 20" Wide Electric Smooth-top Range

• Perfectly sized for apartments and smaller kitchens
• Ceramic surface for easier cleaning and safer cooking
• Easier monitoring of your cooking with an oven window and on/off light
• Broiler is located inside the oven, making it easier to use
• Unit ships with low stainless steel backguard but can be easily converted to a traditional slide-in style for a more integrated look
• Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
• Surface features four 6 1/2" 1200W elements
• Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
• Oven interior features high quality porcelain construction for long-lasting durability
• Cooking elements will cycle off before reaching dangerous flashpoint temperatures to prevent cooking fires, and will cycle back on to resume heating
• Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling
• Sliding racks will stay in your oven with special brake mechanism
• Control panel includes an 'on' light for the oven and burners for added safety when using the range
• Indicator light shows if the cooking surface is still too hot to touch
• Upfront controls and easy-to-operate knobs offer easier accessibility
• Fully finished black cabinet constructed from steel
• Two-piece pan and cover included
• Safety feature included for user installation to help prevent accidents
• Compatible with standard 40 amp 3 or 4-wire range cords

Summit's White Pearl series of North American ranges offers full cooking convenience for apartments and other settings with smaller kitchen spaces. The REX2051BRT is a 220V electric range sized at just under 20" wide in a jet black finish. The versatile design includes a removable 2" high stainless steel backguard, allowing you the choice of a standard range style or a slide-in look with a flat surface that allows you to better integrate the unit with your own backsplash design. The smooth ceramic glass surface includes four 1200W 6 1/2" elements, with a hot surface indicator light for added safety. Inside, the REX2051BRT features a large 2.3 cu.ft. oven made from durable porcelain enamel. The waist-high broiler function is easy to use, with slide-out oven racks that can be adjusted in four different glide positions for the best fit. We include a small two-piece porcelain broiler tray with a grill cover. The large oven window and interior light make it easy to monitor your cooking. Designed and constructed in North America, the REX2051BRT is the perfect choice for smaller kitchens with full cooking needs. Additional choices are available in 24" wide fits. Browse our website to view our complete collection.

Overview

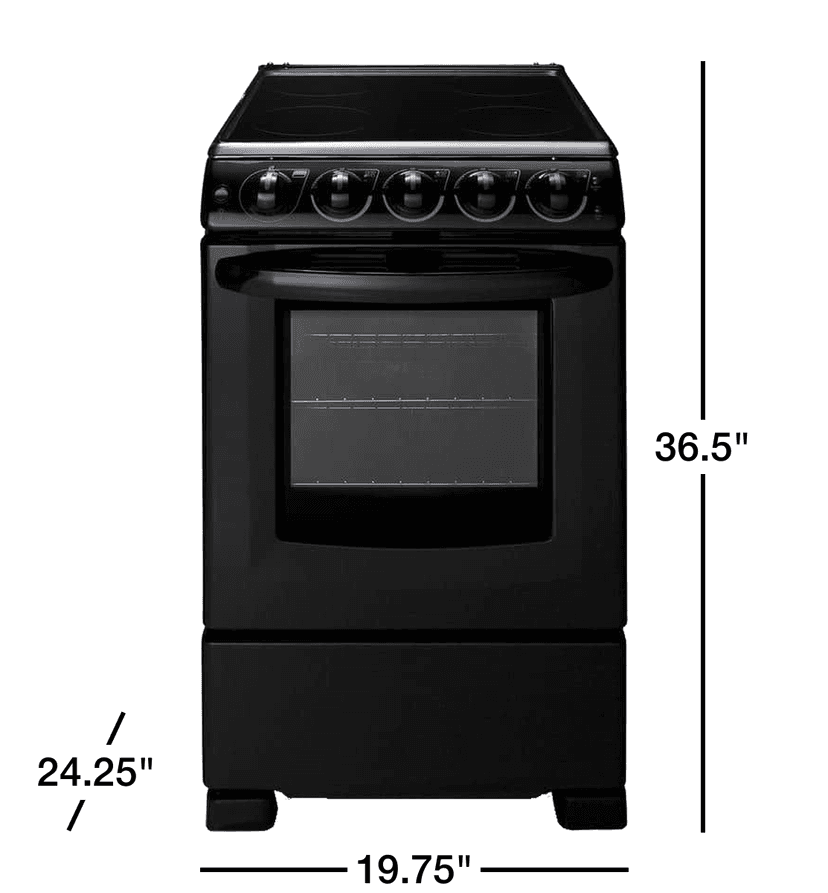

Height of Cabinet	36.5" (93 cm)
Width	19.75" (50 cm)
Depth	24.25" (62 cm)
Depth with Handle	26.5" (67 cm)
Depth with door at 90°	44.25" (112 cm)
Door	Black
Cabinet	Black
US Electrical Safety	UL
Amps	40.0
Voltage/Frequency	220 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
UPC	761101069289
Electric Range
Oven Capacity	2.3 cu.ft. (65 L)
Cooktop Surface	Glass
Element Type	Glasstop
Number of Elements	4
Element #1 Size	6.5" (17 cm)
Element #1 Wattage	1200.0
Element #2 Size	6.5" (17 cm)
Element #2 Wattage	1200.0
Element #3 Size	6.5" (17 cm)
Element #3 Wattage	1200.0
Element #4 Size	6.5" (17 cm)
Element #4 Wattage	1200.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	15.0" (38 cm)
Oven Interior Width	16.0" (41 cm)
Oven Interior Depth	17.5" (44 cm)
Power Source	220V
Broiler Location	Inside Oven

• Brochure W/ Drawings

• Use & Care
